SIMATIC HMI TP900 Comfort INOX
SIMATIC HMI TP900 Comfort INOX

SIMATIC HMI TP900 Comfort INOX

Price 30000.0 INR/ Piece

MOQ : 1 Piece

SIMATIC HMI TP900 Comfort INOX Specification

  • Operating Temperature
  • 0 to 50 C Celsius (oC)
  • Protection Level
  • IP66K Front / IP20 Rear
  • Mounting Type
  • Panel Mount
  • Rated Voltage
  • 24 Volt (V)
  • Input Current
  • 0.75 A
  • Phase
  • DC
  • Humidity
  • 10 90% RH, non-condensing
  • Usage
  • Industrial Automation / Hygienic Applications
  • Condition
  • New
  • Size
  • 9 inch
  • Height
  • 19.5 Centimeter (cm)
  • Function
  • Operator Control & Process Visualization
  • Product Type
  • HMI / Operator Interface
  • Application
  • Machine Operation & Process Visualization
  • Dimension (L*W*H)
  • 6.5 29.5 19.5 Centimeter (cm)
  • Weight
  • 2.9 Kilograms (kg)
  • Color
  • Stainless Steel
  • Power Mode
  • Other
  • Length
  • 6.5 Centimeter (cm)
  • Voltage
  • 24 Volt (v)
  • Width
  • 29.5 Centimeter (cm)
  • Power Consumption
  • 18 Watt (W)


SIMATIC HMI TP900 Comfort INOX Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About SIMATIC HMI TP900 Comfort INOX

The Siemens 6AV2144-8JC10-0AA0 is a specialized 9-inch widescreen HMI panel engineered for highly sanitary, high-pressure washdown environments. Part of the SIMATIC HMI TP900 Comfort INOX series, it features a high-grade stainless steel front housing with a smooth, continuous decorative film to maintain pristine hygiene and prevent fluid accumulation. The vibrant TFT touch display outputs an 800 x 480 pixel resolution with 16 million colors for highly detailed machine visualization and operator process monitoring.
Built to withstand aggressive chemical treatments, food processing routines, and wet-room conditions, its front face achieves a strict IP66K rating to survive intensive, high-pressure cleaning streams. For flexible industrial networking, the terminal integrates dual high-speed PROFINET Ethernet interfaces alongside a legacy MPI/PROFIBUS DP port to establish real-time data communication across diverse PLC networks. Operating on a reliable Windows CE 6.0 platform with 12 MB of configuration memory, it efficiently coordinates intensive local data logging, multi-variable recipes, and complex diagnostic scripts. The robust operator system is seamlessly programmed via WinCC Comfort software from version V11 SP2 onward to optimize cleanroom operations.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Hmi Touch Panel Category

SIPLUS HMI KTP700 Basic | 7-inch widescreen TFT key/touchscreen, PROFINET interface, USB host, 65,536 colors, Front IP65, medial conformal coating for standard extreme environments

SIPLUS HMI KTP700 Basic | 7-inch widescreen TFT key/touchscreen, PROFINET interface, USB host, 65,536 colors, Front IP65, medial conformal coating for standard extreme environments

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Product Type : SIPLUS HMI Basic Panel (2nd Generation)

Protection Level : IP65 Front / IP20 Back Enclosure

Operating Temperature : 20 C to +60 C Celsius (oC)

Mounting Type : Control Panel Cutout via Integrated Tightening Clamps

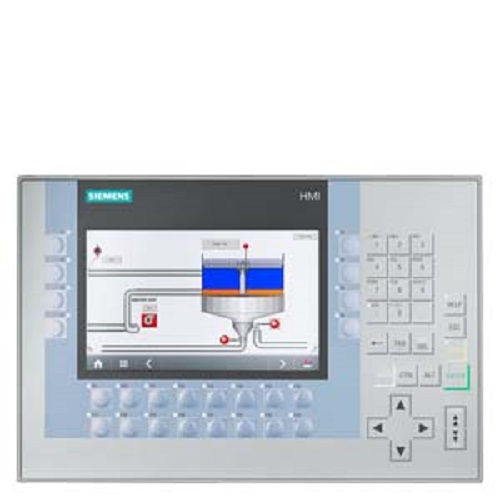

SIPLUS HMI KP1200 Comfort | 12
