SIMATIC IFP1200 Basic | 12" Industrial Touch Monitor, DisplayPort/VGA, IP65 Front

Price 30000.0 INR/ Piece

MOQ : 1 Piece

SIMATIC IFP1200 Basic | 12" Industrial Touch Monitor, DisplayPort/VGA, IP65 Front Specification

  • Humidity
  • 85% Relative Humidity
  • Rated Voltage
  • 24 Volt (V)
  • Mounting Type
  • Panel Mount / Flush / VESA Mount
  • Efficiency
  • High Efficiency
  • Phase
  • DC / Single supply
  • Operating Temperature
  • 0 to +45 C Celsius (oC)
  • Protection Level
  • IP65 Front / IP20 Rear
  • Usage
  • Industrial Computing / Control & Monitoring
  • Size
  • 12.1 inch screen diagonal
  • Condition
  • New
  • Height
  • 5.1 Centimeter (cm)
  • Function
  • External PC Dependent (Monitor unit)
  • Application
  • Industrial Environments
  • Product Type
  • SIMATIC IFP1200 Basic Flat Panel
  • Dimension (L*W*H)
  • 22.6 32.0 5.1 Millimeter (mm)
  • Weight
  • 2.7 Kilograms (kg)
  • Power Mode
  • Other
  • Color
  • Widescreen TFT Display (16M colors)
  • Length
  • 22.6 Centimeter (cm)
  • Voltage
  • 24 Volt (v)
  • Width
  • 32.0 Centimeter (cm)
  • Accessories
  • 2x USB 2.0 interface ports
  • Warranty
  • Manufacturer dependent


SIMATIC IFP1200 Basic | 12" Industrial Touch Monitor, DisplayPort/VGA, IP65 Front Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About SIMATIC IFP1200 Basic | 12" Industrial Touch Monitor, DisplayPort/VGA, IP65 Front

The Siemens 6AV7862-2BC00-0AA0 is a durable, cost-effective 12.1-inch widescreen industrial flat panel monitor precision-engineered for machine-level control panels and standalone monitoring displays. Part of the SIMATIC Industrial Flat Panel Basic family, this rugged unit features a premium TFT widescreen display with a 16:10 aspect ratio, outputting a crisp 1280 x 800 pixel resolution and 16 million colors backed by reliable LED illumination. Operators interface with the system using responsive single-touch controls designed for long-lasting use on busy manufacturing floors.
To survive gritty industrial conditions, it is constructed with a rugged metal frame and enclosure carrying a protective IP65 environmental rating at the front to guarantee immunity against dust and water ingress. For effortless connection to remote computing hosts, it features legacy VGA and digital DisplayPort interfaces allowing a standard distance of up to 5 metres from the central computer unit. Powered by a standard 24V DC supply, this compact 319.6 x 225.6 x 50.1 mm terminal includes two rear USB 2.0 interfaces for connecting hardware peripherals like an external mouse or keyboard. It functions continuously in operational areas between 0 and +45 C and is perfectly suited for flush panel integration or standard VESA mounting setups.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Hmi Touch Panel Category

SIMATIC HMI TP1500 Comfort Pro 15

SIMATIC HMI TP1500 Comfort Pro 15" Pedestal Touch Panel, Expandable, Flange at Bottom

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Usage : Industrial Automation

Condition : New

Operating Temperature : 0 to 50 C Celsius (oC)

Power Consumption : Approx. 20 Watt (W)

SIMATIC HMI MTP1200 Unified Comfort PRO | 12.1-inch widescreen TFT touchscreen, support arm mounting (expandable, round pipe), PROFINET/Ethernet, 16 million colors, IP65 all-round protection, machine-level visualization

SIMATIC HMI MTP1200 Unified Comfort PRO | 12.1-inch widescreen TFT touchscreen, support arm mounting (expandable, round pipe), PROFINET/Ethernet, 16 million colors, IP65 all-round protection, machine-level visualization

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Usage : HighPerformance Industrial Automation

Condition : New

Operating Temperature : 0 C to +45 C Celsius (oC)

Power Consumption : 20 Watt (W)

SIMATIC HMI TP1900 Comfort Pro 19

SIMATIC HMI TP1900 Comfort Pro 19" Pedestal Touch Panel, Expandable, Flange at Bottom

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Usage : Industrial Automation

Condition : New

Operating Temperature : 0 to 50 C Celsius (oC)

Power Consumption : Approx. 30 Watt (W)

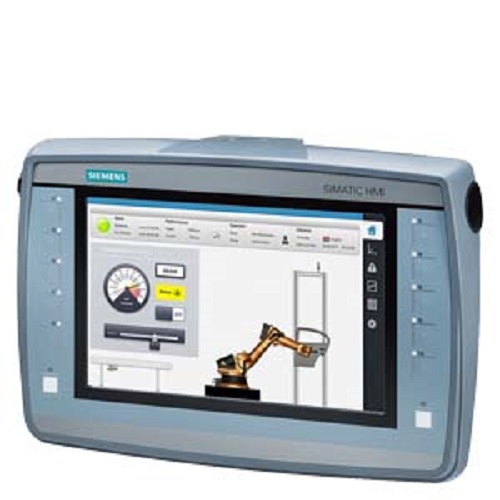

SIMATIC HMI KTP700F Mobile HW/OR | 7
