SIMATIC HMI MTP1200 Unified Comfort PRO | 12.1-inch widescreen TFT touchscreen, support arm mounting (expandable, round pipe), PROFINET/Ethernet, 16 million colors, IP65 all-round protection, machine-level visualization
SIMATIC HMI MTP1200 Unified Comfort PRO | 12.1-inch widescreen TFT touchscreen, support arm mounting (expandable, round pipe), PROFINET/Ethernet, 16 million colors, IP65 all-round protection, machine-level visualization

SIMATIC HMI MTP1200 Unified Comfort PRO | 12.1-inch widescreen TFT touchscreen, support arm mounting (expandable, round pipe), PROFINET/Ethernet, 16 million colors, IP65 all-round protection, machine-level visualization

Price 30000.0 INR/ Piece

MOQ : 1 Piece

SIMATIC HMI MTP1200 Unified Comfort PRO | 12.1-inch widescreen TFT touchscreen, support arm mounting (expandable, round pipe), PROFINET/Ethernet, 16 million colors, IP65 all-round protection, machine-level visualization Specification

  • Phase
  • N/A (Direct Current infrastructure alignment)
  • Operating Temperature
  • 0 C to +45 C Celsius (oC)
  • Input Current
  • Typ. 0.85 A (850 mA current draw) / Max. 1.5 A at 24V line interface
  • Humidity
  • Max. 90% relative humidity (Non-condensing structural system bounds)
  • Mounting Type
  • Direct support arm system installation (Configured for Expandable / Round Pipe)
  • Rated Voltage
  • 24 V DC Volt (V)
  • Protection Level
  • IP65
  • Efficiency
  • Dynamic Backlight Dimming (5 to 100%) optimizing power consumption
  • Main Material
  • Usage
  • High-Performance Industrial Automation
  • Size
  • 12.1" Diagonal Widescreen Display Space Footprint
  • Condition
  • New
  • Height
  • 30.4 Centimeter (cm)
  • Function
  • MTP1200 Unified Multi-Touch rugged operation panel with 16 million colors
  • Product Type
  • SIMATIC HMI Unified Comfort PRO System (Expandable)
  • Application
  • Premium cabinet-free machine automation monitoring, data log, and Edge deployment
  • Dimension (L*W*H)
  • 13.1 cm x 39.9 cm x 30.4 cm Centimeter (cm)
  • Weight
  • 4.70 Kilograms (kg)
  • Color
  • Industrial Gray Front / Black Border Trim
  • Power Mode
  • Other
  • Length
  • 13.1 Centimeter (cm)
  • Width
  • 39.9 Centimeter (cm)
  • Voltage
  • 24 V DC Volt (v)
  • Power Consumption
  • 20 Watt (W)
  • Accessories
  • Ready for Extension Units (Can house custom emergency stops/buttons)
  • Warranty
  • Standard Siemens Factory Warranty


SIMATIC HMI MTP1200 Unified Comfort PRO | 12.1-inch widescreen TFT touchscreen, support arm mounting (expandable, round pipe), PROFINET/Ethernet, 16 million colors, IP65 all-round protection, machine-level visualization Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About SIMATIC HMI MTP1200 Unified Comfort PRO | 12.1-inch widescreen TFT touchscreen, support arm mounting (expandable, round pipe), PROFINET/Ethernet, 16 million colors, IP65 all-round protection, machine-level visualization

Unlock next-generation industrial automation directly at the machine with the Siemens SIMATIC HMI MTP1200 Unified Comfort PRO Panel (Expandable Version). This premium 12.1-inch widescreen TFT touchscreen delivers breathtaking visualization through 16 million brilliant colors and crisp 1280 x 800 pixel resolution. Specially engineered for cabinet-free installation, its rugged, fully enclosed housing features a round-pipe adapter designed for direct support arm mounting and seamless physical extension with optional Extension Units. The high-performance capacitive multi-touch glass front allows seamless, gesture-based controleven while wearing industrial work gloves. Packed with high-speed PROFINET/Ethernet interfaces, it ensures lightning-fast data exchange and effortless integration across your plant floor. Boasting complete IP65 all-round protection, this powerhouse withstands extreme vibration, dust, and liquid splashes in heavy-duty manufacturing environments. Driven by HTML5 web technologies and Siemens Industrial Edge capability, this panel transforms raw operational data into actionable, real-time insights. Elevate your control architecture, minimize costly downtime, and future-proof your smart factory operations with this sleek, ultra-reliable visualization masterpiece.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Hmi Touch Panel Category

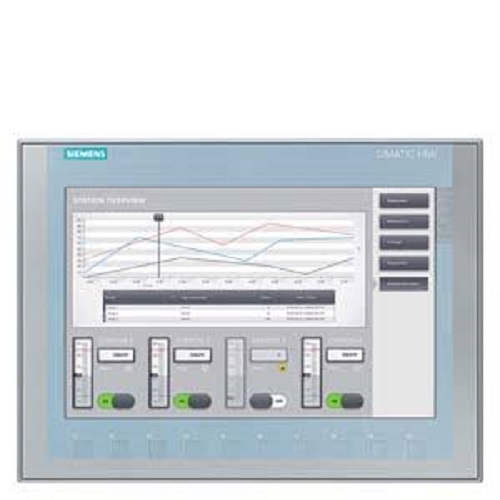

SIPLUS HMI KTP1200 Basic DP | 12-inch widescreen TFT key/touchscreen, PROFIBUS/MPI interface, USB host, 65,536 colors, Front IP65, medial conformal coating for legacy network large-scale extreme environments

SIPLUS HMI KTP1200 Basic DP | 12-inch widescreen TFT key/touchscreen, PROFIBUS/MPI interface, USB host, 65,536 colors, Front IP65, medial conformal coating for legacy network large-scale extreme environments

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Usage : Industrial Machine Interface & Control

Application : Highvisibility operator interface in aggressive atmospheres supporting PROFIBUS networks

Function : KTP1200 Basic DP (Analog resistive touch + 10 tactile function keys)

Condition : New

SIMATIC HMI KTP1200 Basic DP | 12-inch widescreen TFT key/touchscreen, PROFIBUS/MPI interface, USB host, 65,536 colors, Front IP65, legacy network large-scale machine visualization and control

SIMATIC HMI KTP1200 Basic DP | 12-inch widescreen TFT key/touchscreen, PROFIBUS/MPI interface, USB host, 65,536 colors, Front IP65, legacy network large-scale machine visualization and control

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Usage : Industrial Machine Interface & Control

Application : Highvisibility operator interface matching standard PROFIBUS automated solutions

Function : N/A (DC line supply) / RS485 communication data transmission rates

Condition : New

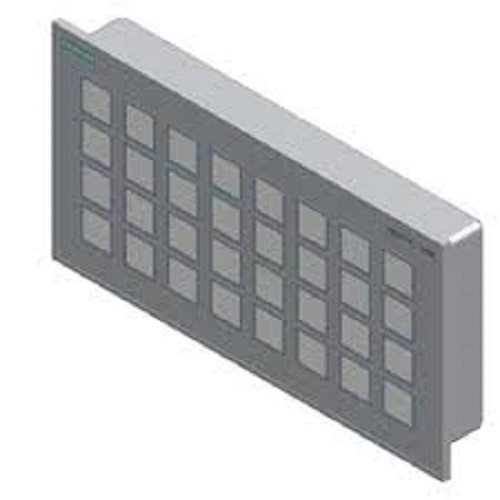

SIMATIC HMI KP32F PN Key Panel | 32 short-stroke keys with multi-colored LEDs, PROFINET with PROFIsafe, 16 DI + 16 DI/DO and 4 fail-safe digital inputs, Front IP65, high-density fail-safe mechanical control interface
