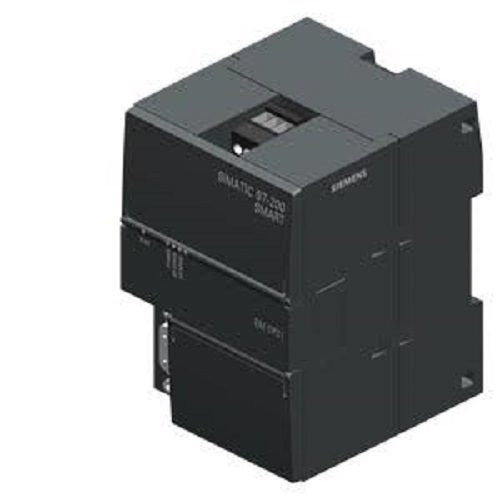

Siemens SIMATIC S7-200 SMART PROFIBUS DP Slave Module

Siemens SIMATIC S7-200 SMART PROFIBUS DP Slave Module About

The Siemens 6ES7288-7DP01-0AA0 is an active, rail-mounted SIMATIC S7-200 SMART communication module (EM DP01). It is engineered to seamlessly integrate small-to-medium PLC architectures into wider network frameworks as outlined on Naksh Technology. Acting strictly as a PROFIBUS DP slave, this 45mm-wide expansion block expands your automation layout by providing a single, isolated PROFIBUS-DP/MPI interface featuring a standard 9-pin Sub-D female terminal.The component supports auto-detecting data transmission rates ranging smoothly from 9.6 kbit/s up to 12 Mbit/s shown on Apter. Operating securely via a nominal 24V DC lines, it accommodates up to 240 bytes of input and 240 bytes of output payload capacity per node. It mounts on a standard DIN rail, side-connecting to the main CPU via a built-in ribbon cable. Network parameters and unique station bus addressing are handled cleanly inside STEP 7-Micro/WIN SMART engineering systems using standard GSD files.
