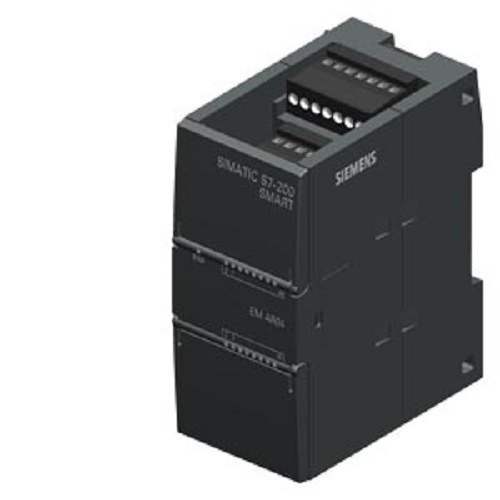

Siemens SIMATIC S7-200 SMART Analog Combination Module (High Density)

Siemens SIMATIC S7-200 SMART Analog Combination Module (High Density) About

The Siemens 6ES7288-3AM06-0AA0 is an active SIMATIC S7-200 SMART analog mixed I/O module (SM AM06) engineered to handle comprehensive closed-loop process layouts in compact environments. Upgrading the capacity of previous mixed cards, this single 45mm-wide expansion component provides four analog inputs and two analog outputs.Operating on a standard 24V DC supply, it interfaces cleanly with intricate field instrumentation. The input channels process voltage (10V, 5V, 2.5V, 010V, 05V) and current (0/420 mA) vectors at a precise 12-bit conversion resolution. Concurrently, its two output channels deliver voltage or current drive signals at 11-bit resolution. Housed in an IP20 shell for standard DIN rail installation, it maintains an efficient thermal footprint with a typical 2W power loss and incorporates intelligent diagnostics for supply monitoring, wire breaks, and short circuits.
