Siemens SIMATIC ET 200SP Fail-Safe Digital Input Module
Siemens SIMATIC ET 200SP Fail-Safe Digital Input Module

Siemens SIMATIC ET 200SP Fail-Safe Digital Input Module

Price 30000.0 INR/ Piece

MOQ : 1 Piece

Siemens SIMATIC ET 200SP Fail-Safe Digital Input Module Specification

  • Application
  • SIMATIC ET 200SP Failsafe Systems
  • IP Rating
  • IP20 Protection Class
  • Sensor Type
  • Safety switches, emergency stops, & 2-wire sensors
  • Connectivity Type
  • Push-in connection via terminal BaseUnit
  • Speed Range
  • Configurable input delay from 0.4 ms to 20 ms
  • Automation Grade
  • Failsafe Industrial Automation (SIL3 / PL e)
  • Weight
  • 49 Grams (g)
  • Processor Type
  • Integrated Safety-ASIC unit with dual-channel logic
  • Remote Control
  • Yes
  • Cable Length
  • 1,000 Meter (m)
  • Phase
  • N/A (Standard DC distribution)
  • Warranty
  • N/A
  • Drive Type
  • N/A
  • Mounting Type
  • Suitable for standard 35mm DIN Rail (BU type A0)
  • Control Type
  • Failsafe Digital Logic / P-reading (PNP)
  • Features
  • 8 isolated F-DI channels, short-circuit protection, sensor test logs
  • Usage
  • Functional safety loops / Emergency shutdown sensing
  • Material
  • Industrial Grade Polycarbonate
  • Power
  • 4 Volt (v)
  • Size
  • Standard SizCompact 15 mm x 73 mm x 58 mm layout modulees
  • Temperature
  • 0 C to 60 C Celsius (oC)
  • Height
  • 58 Millimeter (mm)
  • Voltage
  • 24 Volt (v)
  • Product Type
  • Failsafe Digital Input Module (F-DI 8x24VDC HF)
  • Color
  • Classic Siemens Industrial Grey with yellow safety stripe
  • Length
  • 73 Millimeter (mm)
  • Width
  • 15 Millimeter (mm)


Siemens SIMATIC ET 200SP Fail-Safe Digital Input Module Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 2 Week


About Siemens SIMATIC ET 200SP Fail-Safe Digital Input Module



The Siemens 6ES7136-6BA00-0CA0 is a high-feature (HF) SIMATIC ET 200SP digital input module engineered for safety-critical industrial automation. This 15mm-wide fail-safe module provides eight safety digital inputs (F-DI) operating at a rated supply voltage of 24V DC. It supports functional safety requirements up to Performance Level e (PL e / ISO 13849-1) and Safety Integrity Level 3 (SIL 3 / IEC 61508)
Designed for dense control cabinets, it installs directly onto a BU-type A0 BaseUnit. The module features a robust electronic coding mechanism and built-in short-circuit protection for integrated 24V sensor supplies. It is configurable starting from Siemens STEP 7 TIA Portal V12, communicating via PROFIsafe. Note that this specific model has entered its product phase-out, making it primarily a legacy spare part.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Industrial Automation Category

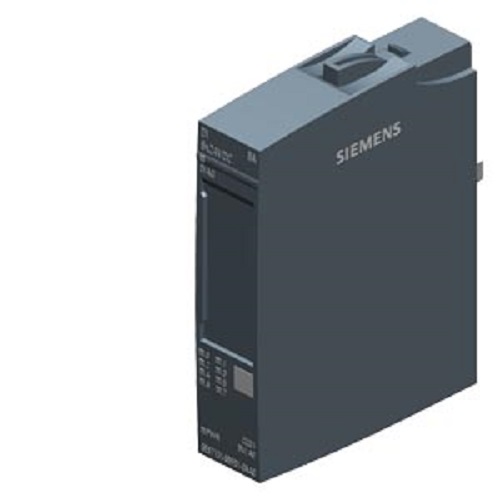

Siemens SIMATIC ET 200SP Digital Input Module

Siemens SIMATIC ET 200SP Digital Input Module

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Application : SIMATIC ET 200SP distributed I/O systems

IP Rating : IP20 Protection Class

Voltage : 24 Volt (v)

Features : 8 isolated digital input channels with diagnostics

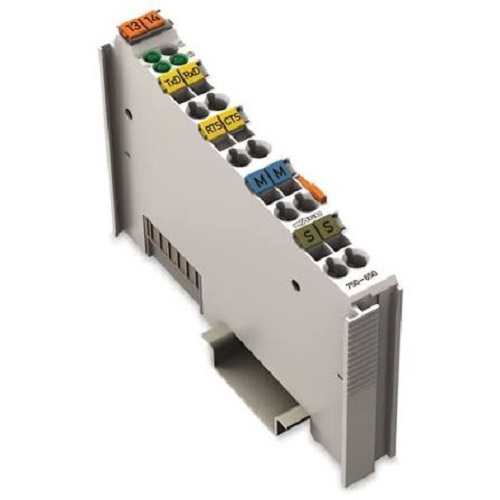

WAGO 750-650 RS-232 Serial Interface Module
