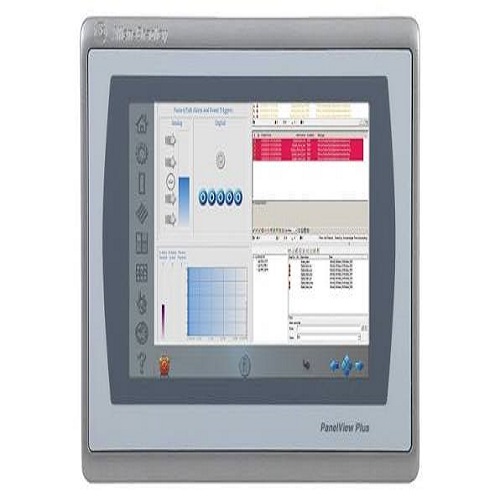

PanelView Plus 7 Standard 1200W | 12.1" Widescreen Touch Terminal, DLR Ethernet, 24V DC Power

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PanelView Plus 7 Standard 1200W | 12.1" Widescreen Touch Terminal, DLR Ethernet, 24V DC Power Specification

Input Current
1.6 to 2.9 A input operational spectrum

Protection Level
IP66 / NEMA Type 4X front enclosure seal

Efficiency
Color TFT 18-bit graphics / FactoryTalk View ME

Phase
Single (DC configuration distribution link)

Rated Voltage
24 V DC Volt (V)

Humidity
95 % maximum relative non-condensing

Operating Temperature
0 C to +55 C (Standard vertical mounting) Celsius (oC)

Mounting Type
Recessed Panel Mount / Control Cabinet Door

Usage
The Allen-Bradley 2711P-T12W22D8S is a high-performance 12.1-inch widescreen industrial HMI terminal precision-engineered for reliable machine-level control and comprehensive system diagnostics across factory floors. Belonging to the efficiency-focused PanelView Plus 7 Standard family, this model features the signature Allen-Bradley corporate branded design and serves as an interactive electronic gateway to Logix-based automation architectures over EtherNet/IP networks. The premium TFT color display features an expansive 16:10 wide aspect ratio layout, outputting a crisp 1280 x 800 WXGA resolution with vibrant 18-bit color graphics and an integrated white LED backlight producing a typical brightness of 300 nits. Operators control local system sequences via a highly responsive, analog-resistive touchscreen interface optimized for accurate plant-floor inputs even while wearing heavy safety gloves.

Main Material

Size
12.1-inch Widescreen (16:10 aspect ratio)

Condition
New

Function
Plant Automation Interfacing & Command

Height
24.0 Centimeter (cm)

Application
Standard Machine Monitoring & Web Visualization

Product Type
PanelView Plus 7 Standard Terminal

Weight
1.95 Kilograms (kg)

Dimension (L*W*H)
34.0 cm x 24.0 cm x 5.65 cm Centimeter (cm)

Color
Slate Gray Frame with Branded Brand Logo

Length
30.73 Centimeter (cm)

Voltage
24 V DC nominal (Permissible 18 to 30 V DC) Volt (v)

Width
34.0 Centimeter (cm)

Power Consumption
50 W Maximum (30 W Typical operating draw) Watt (W)

Battery Life
4 Years

Accessories
Rear installation mounting clips & sealing gasket

Warranty
Supplier Dependent (Standard 1 Year)

PanelView Plus 7 Standard 1200W | 12.1" Widescreen Touch Terminal, DLR Ethernet, 24V DC Power Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

PanelView Plus 7 Standard 1200W | 12.1" Widescreen Touch Terminal, DLR Ethernet, 24V DC Power About

The Allen-Bradley 2711P-T12W22D8S is a high-performance 12.1-inch widescreen industrial HMI terminal precision-engineered for reliable machine-level control and comprehensive system diagnostics across factory floors. Belonging to the efficiency-focused PanelView Plus 7 Standard family, this model features the signature Allen-Bradley corporate branded design and serves as an interactive electronic gateway to Logix-based automation architectures over EtherNet/IP networks. The premium TFT color display features an expansive 16:10 wide aspect ratio layout, outputting a crisp 1280 x 800 WXGA resolution with vibrant 18-bit color graphics and an integrated white LED backlight producing a typical brightness of 300 nits. Operators control local system sequences via a highly responsive, analog-resistive touchscreen interface optimized for accurate plant-floor inputs even while wearing heavy safety gloves.
