SIMATIC Flat Panel 15 Extended | 15" Industrial Monitor, Dual Power, Extended Connection Up to 30m

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIMATIC Flat Panel 15 Extended | 15" Industrial Monitor, Dual Power, Extended Connection Up to 30m Specification

Operating Temperature
0 C to +50 C Celsius (oC)

Input Current
1.0 A (at 24V) / 0.5 A (at 230V)

Mounting Type
Panel Mount / Control Cabinet

Rated Voltage
24 Volt (V)

Efficiency
Dimmable LED-backlit LCD panel

Phase
Single-Phase (For AC main lines)

Frequency
50 / 60 Hertz (HZ)

Protection Level
IP65 (Front-side dust & splash seal)

Humidity
95 % (Non-condensing state)

Main Material

Usage
Industrial Operator Monitor / HMI

Size
15-inch Display

Function
Machine Control & Visualizations

Height
31.0 Centimeter (cm)

Product Type
Industrial Flat Panel Display

Application
Extended Version (Max 30m distance)

Weight
8.72 Kilograms (kg)

Dimension (L*W*H)
48.3 cm x 31.0 cm x 5.5 cm Centimeter (cm)

Color
Industrial Silver / Metallic Gray

Width
48.3 Centimeter (cm)

Voltage
24 Volt (v)

Length
38.1 Centimeter (cm)

Power Consumption
~26 W (Typical runtime usage) Watt (W)

Accessories
180.0 cm industrial signal cable included

Warranty
Supplier Dependent (Standard 1 Year)

SIMATIC Flat Panel 15 Extended | 15" Industrial Monitor, Dual Power, Extended Connection Up to 30m Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

SIMATIC Flat Panel 15 Extended | 15" Industrial Monitor, Dual Power, Extended Connection Up to 30m About

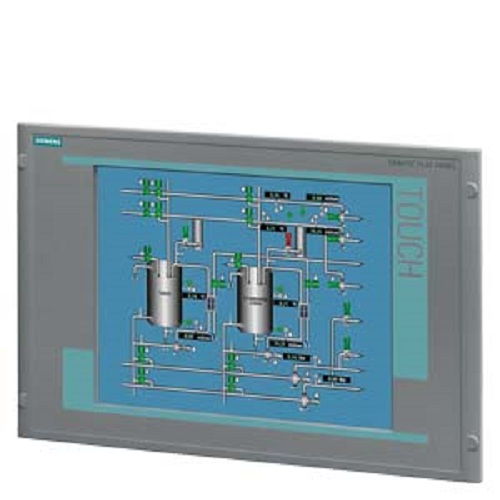

The Siemens 6AV7861-2AB10-2AA0 is a professional-grade 15-inch classic-aspect industrial flat panel monitor precision-engineered for control cabinet installation and remote plant visualization systems. Based on the robust SIMATIC Flat Panel 15 Extended framework, this specific variant is a display-only version configured without any touchscreen functionality or integrated function keys, serving strictly as a heavy-duty video receiver terminal.

Two major engineering features define this model: its flexible dual power architecture, which natively accepts both low-voltage 24V DC and high-voltage 120/240V AC inputs, and its built-in signal transceivers that allow it to be placed at an extended transmission distance of up to 30 metres away from the central industrial computing host. It incorporates a high-contrast TFT display with a traditional 4:3 layout, outputting a crisp 1024 x 768 pixel resolution and 16.2 million colors illuminated by a long-lasting, dimmable LED backlight.
