SIMATIC HMI TP1200 Comfort Pro | 12" Support Arm Touch Panel, PROFINET, MPI/PROFIBUS DP

About SIMATIC HMI TP1200 Comfort Pro | 12" Support Arm Touch Panel, PROFINET, MPI/PROFIBUS DP

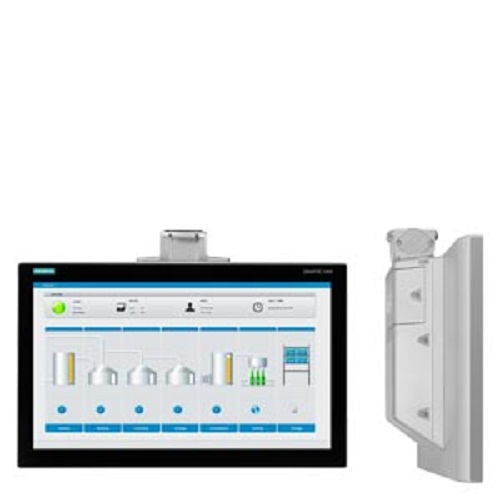

The Siemens 6AV2124-0MC24-0AX0 is a high-performance 12.1-inch widescreen HMI panel precision-engineered for direct machine-level integration without a control cabinet. Part of the specialized SIMATIC HMI TP1200 Comfort Pro series, this rugged terminal is designed for support arm mounting featuring a non-expandable housing with a mechanical flange on top. It boasts a brilliant TFT touch display with a sharp 1280 x 800 pixel resolution and 16 million colors to provide operators with fluent, responsive visualization across intricate automation workflows. For comprehensive factory floor networking, the unit integrates dual high-speed PROFINET Ethernet interfaces alongside a legacy MPI/PROFIBUS DP port. The entire enclosure delivers all-round, high-degree industrial protection to successfully withstand harsh plant environments without the need for additional protective housings. Running a stable Windows Embedded Compact 2013 (WEC 2013) platform with an expanded 24 MB configuration memory, it efficiently coordinates massive data tracking, multi-variable recipes, and complex diagnostic scripts. The operator device is seamlessly programmed using WinCC Comfort software from version V14 SP1 with HSP onward
