SIMATIC ITC1900 V3 | 19" Industrial Thin Client, Multi-Touch, RDP/VNC/SmartServer HTML5

SIMATIC ITC1900 V3 | 19" Industrial Thin Client, Multi-Touch, RDP/VNC/SmartServer HTML5 About

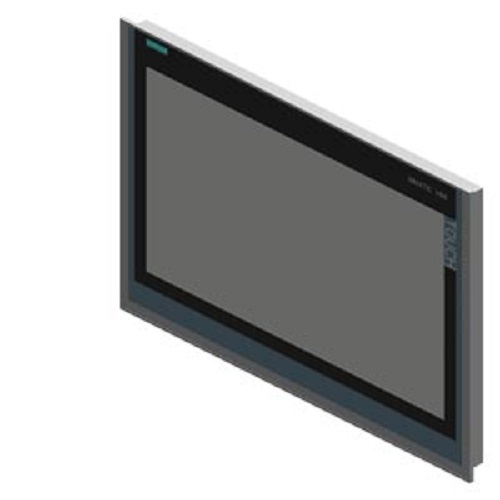

The Siemens 6AV6646-1BA18-0AA0 is a SIMATIC ITC1900 V3 Industrial Thin Client designed for remote visualization and operator-interface applications in industrial automation. It features an 18.5-inch widescreen TFT display, classified as a 19-inch display, with 1366 768 pixel resolution, 16.7 million colors, and dimmable LED backlighting with an expected service life of approximately 50,000 hours at 25 C. The non-reflective, tempered mineral-glass screen incorporates projected-capacitive multi-touch technology, providing responsive and intuitive operator control. The unit supports RDP, VNC Viewer, Sm@rtServer, HTML5, and other standard remote visualization protocols, allowing flexible connection to compatible industrial computer and automation systems. Designed as a built-in, front-mounted unit, it provides IP65 front protection and supports rack mounting with an appropriate frame. Operating from a 24 V DC supply with a permissible range of 19.228.8 V DC, it consumes approximately 1.4 A with typical power input of 34 W. Connectivity includes 2 Industrial Ethernet/PROFINET ports with integrated switch functionality, supporting transmission rates up to 1000 Mbit/s, along with 4 rear USB interfaces. With approximate front dimensions of 464 294 mm, a built-in depth of 73 mm, and a weight of approximately 7.26 kg, the 6AV6646-1BA18-0AA0 is suitable for machine control panels, industrial cabinets, production equipment, and distributed visualization systems. Siemens currently identifies this exact article number as a spare part.
