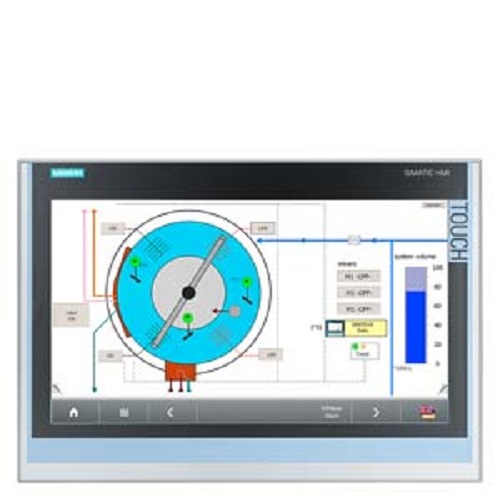

SIMATIC IFP1900 Extended | 19" Industrial Multi-Touch Monitor, Full HD, Extended Connection

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIMATIC IFP1900 Extended | 19" Industrial Multi-Touch Monitor, Full HD, Extended Connection Specification

Operating Temperature
0 to +50 C Celsius (oC)

Protection Level
IP65 Front

Rated Voltage
24 Volt (V)

Efficiency
High Efficiency

Phase
DC / Single supply

Humidity
95% Relative Humidity (Non-condensing)

Mounting Type
Built-in / Panel Mount / Extended transceiver layout up to 30 meters

Main Material

Usage
Industrial Computing / Control & Monitoring

Size
18.5 inch screen diagonal

Condition
New

Function
Operator Control, Widescreen Full HD Multitouch Panel

Height
6.35 Centimeter (cm)

Product Type
SIMATIC IFP1900 Full HD Flat Panel Monitor (V1+)

Application
Industrial Automation / Multi-touch Extended Station Control

Weight
4.8 Kilograms (kg)

Dimension (L*W*H)
29.4 46.4 6.35 Centimeter (cm)

Color
Widescreen TFT Display (16.7M colors, 24-bit)

Length
29.4 Centimeter (cm)

Width
46.4 Centimeter (cm)

Power Consumption
24 W (Typical operational power loss) Watt (W)

Accessories
Includes 1.8 m DVI/USB standard connection cable

Warranty
Manufacturer dependent

SIMATIC IFP1900 Extended | 19" Industrial Multi-Touch Monitor, Full HD, Extended Connection Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

SIMATIC IFP1900 Extended | 19" Industrial Multi-Touch Monitor, Full HD, Extended Connection About

The Siemens 6AV7863-6MA10-1AA0 is a professional-grade 18.5-inch widescreen industrial flat panel monitor precision-engineered for advanced control room environments and machine-level visualization setups. Part of the specialized SIMATIC Industrial Flat Panel (IFP) portfolio, this high-performance model features scratch-resistant, glare-free glass integrated with highly responsive projected capacitive multi-touch technology to support fluid, intuitive gesture interactions. It features a premium TFT widescreen layout with a 16:9 aspect ratio, outputting a razor-sharp Full HD 1920 x 1080 pixel resolution and 16.7 million colors backed by an energy-efficient, long-lasting LED backlight with a wide 178 viewing angle. As an Extended version, it incorporates specialized signal transceivers that allow it to be installed at a long transmission distance of up to 30 metres away from the central industrial computing host.

Built to survive aggressive factory floor variables, the unit is constructed with a rugged housing that provides an IP65 environmental rating at the front to completely block out fine industrial dust and liquid splashes. For advanced video connectivity, it integrates professional DVI-D and digital DisplayPort (DP) interfaces, shipping with a standard 1.8-metre DVI/USB combined cabling bundle for immediate data and touch signal transmission.
