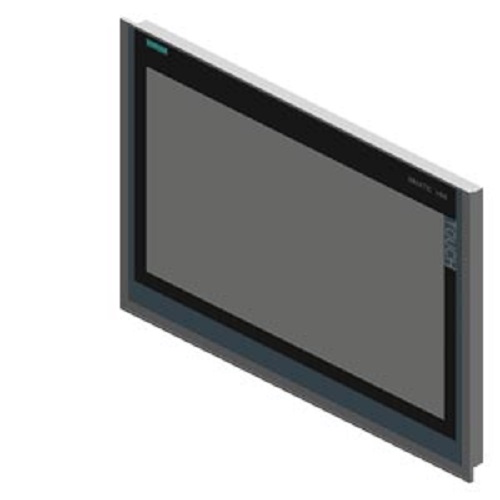

SIMATIC IFP1500 Basic | 15
SIMATIC IFP1500 Basic | 15

SIMATIC IFP1500 Basic | 15" Industrial Touch Monitor, DisplayPort/VGA, IP65 Front

Price 30000.0 INR/ Piece

MOQ : 1 Piece

SIMATIC IFP1500 Basic | 15" Industrial Touch Monitor, DisplayPort/VGA, IP65 Front Specification

  • Efficiency
  • High Efficiency
  • Protection Level
  • IP65 Front / IP20 Rear
  • Humidity
  • 85% Relative Humidity
  • Operating Temperature
  • 0 to +45 C Celsius (oC)
  • Rated Voltage
  • 24 Volt (V)
  • Mounting Type
  • Panel Mount / Built-in unit installation
  • Phase
  • DC / Single supply
  • Input Current
  • 0.6 A
  • Main Material
  • Usage
  • Industrial Computing / Control & Monitoring
  • Size
  • 15.0 inch screen diagonal (15.6" total display size)
  • Condition
  • New
  • Function
  • Industrial Visual Display & Widescreen Touch Control
  • Height
  • 5.4 Centimeter (cm)
  • Application
  • Industrial Automation / Flat Panel Monitor System
  • Product Type
  • SIMATIC IFP1500 Basic Flat Panel
  • Dimension (L*W*H)
  • 27.8 41.5 5.4 Centimeter (cm)
  • Weight
  • 3.2 Kilograms (kg)
  • Power Mode
  • Other
  • Color
  • Widescreen TFT Display (16M colors)
  • Voltage
  • 24 Volt (v)
  • Width
  • 41.5 Centimeter (cm)
  • Length
  • 27.8 Centimeter (cm)
  • Power Consumption
  • 15 W (typical operational configuration) Watt (W)
  • Accessories
  • 2x USB 2.0 interface ports
  • Warranty
  • Manufacturer dependent


SIMATIC IFP1500 Basic | 15" Industrial Touch Monitor, DisplayPort/VGA, IP65 Front Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About SIMATIC IFP1500 Basic | 15" Industrial Touch Monitor, DisplayPort/VGA, IP65 Front

The Siemens 6AV7862-2BD00-0AA0 is a durable, cost-effective 15.4-inch widescreen industrial flat panel monitor precision-engineered for machine-level control panels and standalone monitoring displays. Part of the specialized SIMATIC Industrial Flat Panel Basic family, this rugged unit features a premium TFT widescreen display with a 16:10 aspect ratio, outputting a crisp 1280 x 800 pixel resolution and 16 million colors backed by reliable, energy-efficient LED backlighting. Operators interface with the system using a highly responsive, analog-resistive single-touch screen engineered for long-lasting use on busy manufacturing floors.
To survive gritty industrial conditions, it is constructed with a rugged metal frame and enclosure carrying a protective IP65 environmental rating at the front to guarantee immunity against industrial dust and liquid ingress. For effortless connection to remote computing hosts, it features legacy VGA and digital DisplayPort interfaces, allowing a standard distance of up to 5 metres from the central computer unit. Powered by a standard 24V DC supply, this compact terminal includes rear USB 2.0 interfaces for connecting hardware peripherals like an external mouse or keyboard.
