SIMATIC HMI TP2200 Comfort Pro 22
SIMATIC HMI TP2200 Comfort Pro 22
images Send Inquiry
Request To Call Back

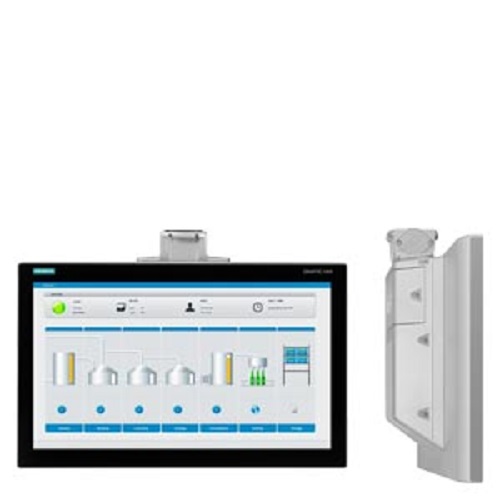

SIMATIC HMI TP2200 Comfort Pro 22" Pedestal Touch Panel, Expandable, Flange at Bottom

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

SIMATIC HMI TP2200 Comfort Pro 22" Pedestal Touch Panel, Expandable, Flange at Bottom Specification

  • Phase
  • DC
  • Rated Voltage
  • 24 Volt (V)
  • Humidity
  • 10 90% RH, non-condensing
  • Operating Temperature
  • 0 to 45 C Celsius (oC)
  • Protection Level
  • IP65 / NEMA 4
  • Input Current
  • Approx. 1.9 A max.
  • Mounting Type
  • Pedestal / Extendable Support, Flange Bottom
  • Usage
  • Industrial Automation
  • Condition
  • New
  • Size
  • 22 inch
  • Function
  • Operator Control & Process Visualization
  • Height
  • 32.9 Centimeter (cm)
  • Application
  • Machine Operation & Process Visualization
  • Product Type
  • HMI / Operator Interface
  • Weight
  • 9.7 Kilograms (kg)
  • Dimension (L*W*H)
  • 10.1 52.7 32.9 Centimeter (cm)
  • Color
  • Silver / Aluminum
  • Power Mode
  • Other
  • Width
  • 52.7 Centimeter (cm)
  • Length
  • 10.1 Centimeter (cm)
  • Voltage
  • 24 Volt (v)
  • Power Consumption
  • Approx. 36 Watt (W)


SIMATIC HMI TP2200 Comfort Pro 22" Pedestal Touch Panel, Expandable, Flange at Bottom Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About SIMATIC HMI TP2200 Comfort Pro 22" Pedestal Touch Panel, Expandable, Flange at Bottom

The Siemens 6AV2124-0XC24-1AX1 is a high-performance 21.5-inch widescreen HMI panel engineered for cabinet-free, large-scale industrial monitoring. Serving as the direct official successor to the older -1AX0 variant, it belongs to the specialized SIMATIC HMI TP2200 Comfort PRO series designed explicitly for pedestal installation or supporting foot mounting. It features an expandable housing structure with a physical connection flange positioned at the bottom.
The extensive TFT touch display outputs a razor-sharp Full HD 1920 x 1080 pixel resolution with 16 million colors to provide operators with absolute graphical clarity across complex plant layouts. For comprehensive factory-floor networking, the unit integrates high-speed PROFINET Ethernet interfaces alongside a legacy MPI/PROFIBUS DP port to facilitate real-time data communication across diverse controller networks.
The robust, fully enclosed design delivers all-round industrial protection, allowing the terminal to successfully withstand harsh manufacturing environments without requiring an additional control cabinet enclosure. Running a stable Windows Embedded Compact 2013 (WEC 2013) platform with 24 MB of configuration memory, it efficiently coordinates intensive data archiving, multi-variable recipes, and complex diagnostic scripts. The modernized operator system is seamlessly programmed using TIA Portal V16 Update 8 or V17 Update 6 and newer
