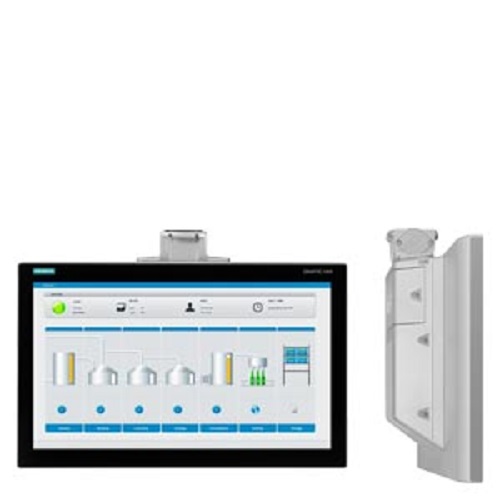

SIMATIC HMI TP1900 Comfort Pro 19" Pedestal Touch Panel, Expandable, Flange at Bottom

About SIMATIC HMI TP1900 Comfort Pro 19" Pedestal Touch Panel, Expandable, Flange at Bottom

The Siemens 6AV2124-0UC24-1AX0 is a high-performance 18.5-inch widescreen HMI panel precision-engineered for cabinet-free industrial monitoring. Part of the specialized SIMATIC HMI TP1900 Comfort PRO series, this rugged device is built specifically for pedestal installation or supporting foot mounting, featuring an expandable housing structure with a mechanical connection flange positioned at the bottom. The vibrant TFT touch display outputs a sharp 1366 x 768 pixel resolution with 16 million colors to provide operators with clear process tracking and fluent menu navigation. For comprehensive factory-floor networking, the unit integrates dual high-speed PROFINET Ethernet interfaces alongside a legacy MPI/PROFIBUS DP port to facilitate real-time data communication across diverse controller networks. The robust, fully enclosed design delivers all-round high-degree protection, allowing the terminal to successfully withstand harsh manufacturing environments without requiring an additional control cabinet enclosure. Running a stable Windows Embedded Compact 2013 (WEC 2013) platform with 24 MB of configuration memory, it efficiently coordinates intensive data archiving, multi-variable recipes, and complex diagnostic scripts. The advanced operator system is programmed using WinCC Comfort software from version V14 SP1 with HSP onward.
