SIPLUS HMI MTP700 Unified Comfort Panel | 7
SIPLUS HMI MTP700 Unified Comfort Panel | 7
images Send Inquiry
Request To Call Back

SIPLUS HMI MTP700 Unified Comfort Panel | 7" Multi-Touch, Conformal Coating, PROFINET

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

SIPLUS HMI MTP700 Unified Comfort Panel | 7" Multi-Touch, Conformal Coating, PROFINET Specification

  • Mounting Type
  • Panel Mount / Flush Mount
  • Protection Level
  • IP65 (front)
  • Humidity
  • 10 90% RH, non-condensing
  • Phase
  • DC
  • Input Current
  • Approx. 0.35 A
  • Operating Temperature
  • 0 to 50 C Celsius (oC)
  • Rated Voltage
  • 24 Volt (V)
  • Main Material
  • Usage
  • Industrial Automation
  • Size
  • 7 inch
  • Condition
  • New
  • Function
  • Operator Control & Process Visualization
  • Height
  • 15.8 Centimeter (cm)
  • Product Type
  • HMI / Operator Interface
  • Application
  • Machine Operation & Process Visualization
  • Weight
  • 1.4 Kilograms (kg)
  • Dimension (L*W*H)
  • 6.36 21.4 15.8 Centimeter (cm)
  • Color
  • Aluminum / Silver
  • Power Mode
  • Other
  • Length
  • 6.36 Centimeter (cm)
  • Voltage
  • 24 Volt (v)
  • Width
  • 21.4 Centimeter (cm)
  • Power Consumption
  • Approx. 8 Watt (W)
  • Accessories
  • SD Card, USB Memory, Printer / Barcode Reader
  • Warranty
  • As per supplier/manufacturer


SIPLUS HMI MTP700 Unified Comfort Panel | 7" Multi-Touch, Conformal Coating, PROFINET Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About SIPLUS HMI MTP700 Unified Comfort Panel | 7" Multi-Touch, Conformal Coating, PROFINET

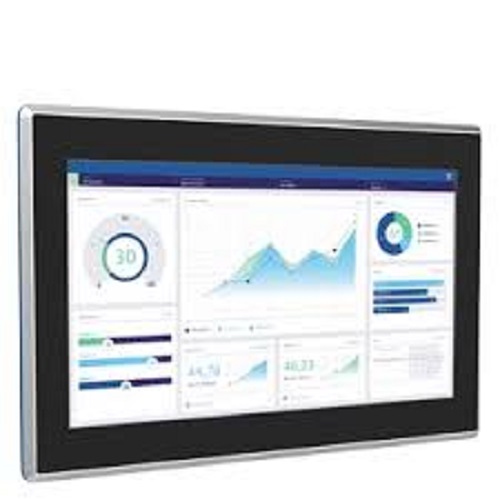

The Siemens 6AG1128-3GB06-4AX1 is a ruggedized 7-inch widescreen HMI panel engineered to withstand extremely harsh environmental conditions. Part of the SIPLUS HMI MTP700 Unified Comfort series, this industrial terminal features a premium conformal coating on its internal components. This specialized layer provides advanced chemical and physical resistance against moisture, dust, corrosive gases, and harsh temperatures. The device sports a high-contrast TFT display with an 800 x 480 pixel resolution and 16 million colors for highly detailed process visualization. Operators can leverage fluent, responsive capacitive multi-touch operations optimized for intensive factory environments. It integrates high-speed PROFINET interfaces, multiple USB ports, and native Industrial Edge capabilities to execute local data processing applications directly on the hardware. Configured via WinCC Unified Comfort software, it delivers exceptional scalability, robust security controls, and reliable real-time PLC communications.
SIPLUS HMI MTP700 Unified Comfort Panel | 7
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Hmi Touch Panel Category

SIMATIC HMI Unified Comfort Panel | 12

SIMATIC HMI Unified Comfort Panel | 12" Touchscreen, PROFINET, Ethernet, USB, Front IP65

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Function : Operator Control & Process Visualization

Protection Level : IP69

Condition : New

Humidity : 10 90% RH, noncondensing

Get a Price/Quote

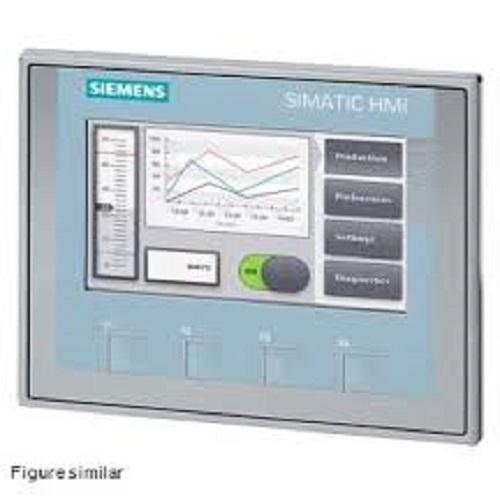

SIPLUS HMI KTP400 Basic | 4-inch widescreen TFT key/touchscreen, PROFINET interface, USB host, 65,536 colors, Front IP65, medial conformal coating for compact extreme environments
