SIMATIC HMI TP1200 Comfort INOX PCT | 12" Widescreen Glass Touch Panel, Stainless Steel Front, IP69K

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIMATIC HMI TP1200 Comfort INOX PCT | 12" Widescreen Glass Touch Panel, Stainless Steel Front, IP69K Specification

Rated Voltage
24 Volt (V)

Humidity
10 90% RH, non-condensing

Operating Temperature
0 to 50 C Celsius (oC)

Protection Level
IP69K Front / IP20 Rear

Input Current
Approx. 0.85 A

Mounting Type
Panel Mount

Phase
DC

Main Material

Usage
Industrial Automation / Hygienic Applications

Size
12 inch

Condition
New

Height
24.1 Centimeter (cm)

Function
Operator Control & Process Visualization

Product Type
HMI / Operator Interface

Application
Machine Operation & Process Visualization

Dimension (L*W*H)
6.5 33.0 24.1 Centimeter (cm)

Weight
4.2 Kilograms (kg)

Power Mode
Other

Color
Stainless Steel

Length
6.5 Centimeter (cm)

Voltage
24 Volt (v)

Width
33.0 Centimeter (cm)

Power Consumption
Approx. 20 Watt (W)

Warranty

SIMATIC HMI TP1200 Comfort INOX PCT | 12" Widescreen Glass Touch Panel, Stainless Steel Front, IP69K Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About SIMATIC HMI TP1200 Comfort INOX PCT | 12" Widescreen Glass Touch Panel, Stainless Steel Front, IP69K

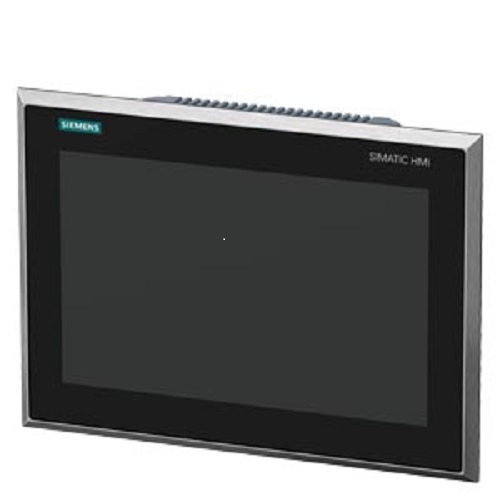

The Siemens 6AV2144-8MC20-0AA0 is a specialized, ruggedized 12.1-inch widescreen HMI panel precision-engineered for ultra-hygienic and harsh process automation zones. Belonging to the SIMATIC HMI TP1200 Comfort INOX PCT family, it features a scratch-resistant front glass pane and highly responsive projected capacitive multi-touch technology. The premium TFT display presents a crisp 1280 x 800 pixel resolution backing 16 million colors for distinct machine visualization and clear data presentation.

Built explicitly for chemical, pharmaceutical, and food-processing environments, its specialized stainless steel front enclosure delivers a strict IP69K front protection rating to withstand close-range, high-pressure, and high-temperature washdowns. For versatile network communication, the unit hosts an integrated PROFINET interface alongside a legacy MPI/PROFIBUS DP port. Powered by a 24V DC supply and an x86 processor with 12 MB of configuration memory, it runs a stable Windows CE 6.0 platform and is seamlessly programmed using WinCC Comfort V15 or newer software.
