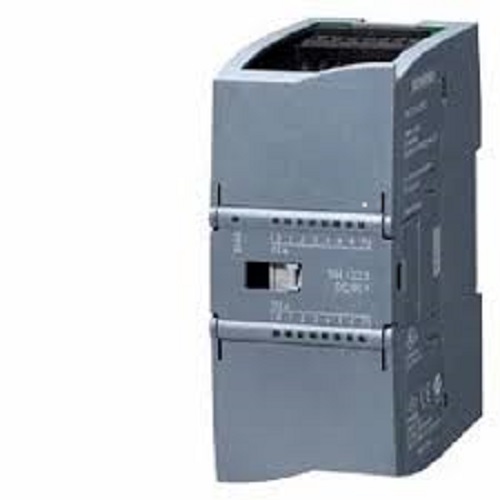

Siemens, SIPLUS S7-1200, 6AG2232-4HD32-1XB0, 4 AO, 0 DO, 0 DI, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS S7-1200, 6AG2232-4HD32-1XB0, 4 AO, 0 DO, 0 DI, 0 AI, Single-phase, 24 V DC. Specification

Operating Temperature
-25 C to +60 C Celsius (oC)

Rated Voltage
24 V DC Volt (V)

Protection Level
IP20

Input Current
Typ. 45 mA from 5V DC backplane bus

Output Voltage
10 V Volt (V)

Humidity
100% Relative Humidity with condensation/frost permissible

Mounting Type
35 mm DIN Rail / Panel Mount

Efficiency
~1.5 W Typical Power Loss

Main Material

Usage
Industrial Automation

Size
4.5 cm Overall Width

Condition
New

Height
10.0 Centimeter (cm)

Function
SM 1232, 4 Analog Outputs

Application
Safe logical control and rolling stock automation conforming to EN 50155

Product Type
SIPLUS S7-1200 Rail Analog Output Module

Dimension (L*W*H)
7.5 cm x 4.5 cm x 10.0 cm Centimeter (cm)

Weight
0.19 Kilograms (kg)

Power Mode
Other

Color
Industrial Gray

Length
7.5 Centimeter (cm)

Width
4.5 Centimeter (cm)

Voltage
24 V DC Volt (v)

Power Consumption
1.5 Watt (W)

Accessories
Required Front Connector Terminals

Warranty
Standard Siemens Factory Warranty

Siemens, SIPLUS S7-1200, 6AG2232-4HD32-1XB0, 4 AO, 0 DO, 0 DI, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIPLUS S7-1200, 6AG2232-4HD32-1XB0, 4 AO, 0 DO, 0 DI, 0 AI, Single-phase, 24 V DC.

The Siemens SIPLUS S7-1200 SM 1232 RAIL analog output expansion module (model number 6AG2232-4HD32-1XB0) features 4 analog outputs (AO), with 0 digital outputs (DO), 0 digital inputs (DI), and 0 analog inputs (AI). Derived from the standard 6ES7232-4HD32-0XB0 baseline hardware design, it processes voltage signals (10 V) with a 14-bit resolution and current signals (020 mA / 420 mA) with a 13-bit resolution to drive railway-grade process actuators. Operating within a single-phase architecture powered by a standard 24 V DC voltage supply, this specialized module features a robust protective conformal coating and holds EN 50155 certification for railway infrastructure installations, ensuring reliable telemetry performance under severe vibration, shock, and extreme thermal conditions.
