Siemens SIMATIC S7-1500 Digital Output Module DQ 32x24V DC/0.5A HF, 32 Channels in Groups of 8, 4A per Group, Single-Channel Diagnostics

Price 29999.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Siemens SIMATIC S7-1500 Digital Output Module DQ 32x24V DC/0.5A HF, 32 Channels in Groups of 8, 4A per Group, Single-Channel Diagnostics Specification

  • Rated Voltage
  • 24 V DC Volt (V)
  • Mounting Type
  • SIMATIC S7-1500 Mounting Rail installation
  • Humidity
  • Standard non-condensing industrial operation limits
  • Efficiency
  • Safe load shutdown up to SIL2 / PL d standard
  • Phase
  • Radio interference suppression Class B equivalent
  • Protection Level
  • IP20 Protection Rating
  • Operating Temperature
  • -30 C to +60 C (Horizontal deployment) Celsius (oC)
  • Input Current
  • Permissible range: 19.2 V to 28.8 V DC
  • Frequency
  • Max 100 Hz (Resistive) / 10 Hz (Lamp Load) Hertz (HZ)
  • Output Voltage
  • 24 V DC (0.5 A max per channel rated current) Volt (V)
  • Usage
  • Actuator switching, automated manufacturing systems
  • Main Material
  • Size
  • 3.5 cm high-density modular footprint
  • Condition
  • New
  • Height
  • 14.7 Centimeter (cm)
  • Function
  • 32 Digital Outputs with single-channel diagnostics
  • Product Type
  • SIMATIC S7-1500 Digital Output Module
  • Application
  • Solenoid valves, DC contactors, indicator lamps
  • Dimension (L*W*H)
  • 12.9 x 3.5 x 14.7 cm Centimeter (cm)
  • Weight
  • 280 Grams (g)
  • Color
  • Industrial Gray / Dark Anthracite
  • Power Mode
  • Other
  • Width
  • 3.5 Centimeter (cm)
  • Voltage
  • 24 V DC Volt (v)
  • Length
  • 12.9 Centimeter (cm)
  • Power Consumption
  • Typical 4.0 W to 5.5 W system power loss Watt (W)
  • Accessories
  • Push-In or Screw-type 40-pin Front Connector
  • Warranty
  • Standard manufacturer/distributor warranty


Siemens SIMATIC S7-1500 Digital Output Module DQ 32x24V DC/0.5A HF, 32 Channels in Groups of 8, 4A per Group, Single-Channel Diagnostics Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • -2 Week


About Siemens SIMATIC S7-1500 Digital Output Module DQ 32x24V DC/0.5A HF, 32 Channels in Groups of 8, 4A per Group, Single-Channel Diagnostics

The Siemens 6ES7522-1BL01-0AB0 is a SIMATIC S7-1500 SM 522 digital output module designed to expand the output capacity of S7-1500 PLCs. It provides 32 digital transistor outputs (24 V DC, 0.5 A) arranged in groups of 8 with 4 A per group. The module supports single-channel diagnostics, substitute value functionality, an integrated switching cycle counter, and safety-oriented shutdown of load groups up to SIL 2. It is ideal for machine control, process automation, and industrial automation applications.
Siemens SIMATIC S7-1500 Digital Output Module DQ 32x24V DC/0.5A HF, 32 Channels in Groups of 8, 4A per Group, Single-Channel Diagnostics
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Siemens Plc Category

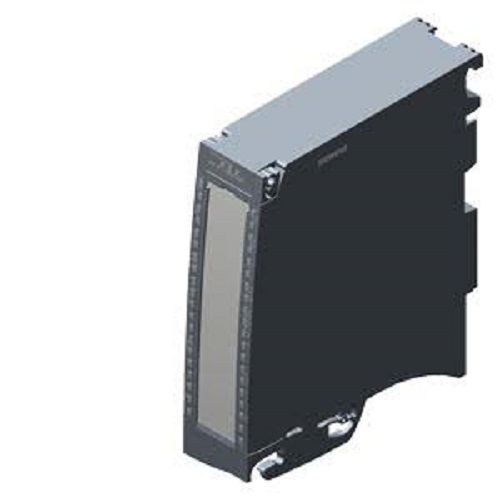

Siemens SIPLUS S7-1500 TM PosInput 2 Counter and Position Detection Module, negative 25 to positive 70 degrees Celsius operating temperature with conformal coating, 24V DC, based on 6ES7551-1AB00-0AB0.
