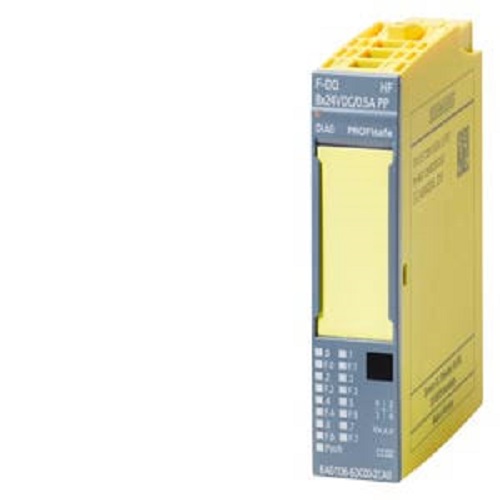

Siemens, SIPLUS extreme, 6AG1136-6DC00-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS extreme, 6AG1136-6DC00-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC Specification

Usage & Applications
Emergency stop tracking, safe actuator firing loops, interlocking safety contactors, capacitive load switching, and multi-module safety groupings in harsh industrial or chemical atmospheres

Product Type
Fail-Safe Digital Output Module (SIPLUS ET 200SP F-DQ 4x24VDC/2A PP HF)

Number of Channels
4 fail-safe digital outputs

Call Control Protocol
PROFIsafe profile functionality

Frequency (MHz)
30 Hertz (HZ)

Storage Temperature
-40 C to +70 C Celsius (oC)

Network Connection Methods
PROFIsafe safety communication profile over standard ET 200SP backplane setups

Power
3.5 Watt (w)

Dimension (L*W*H)
1.5 cm x 5.8 cm x 7.3 cm Centimeter (cm)

Weight
0.057 Kilograms (kg)

Range
Rated current per output channel: 2.0 A max safely limited

Size
Ultra-compact 15 mm standard building block width profile

Usage
Industrial

Power Supply
24 V DC nominal tracking voltage supply (Permissible input safety range: 19.2 V to 28.8 V DC)

No. of Ports/Pins
Integrates directly onto a single 16-pin BaseUnit slot alignment

Material
Industrial-grade polycarbonate functional safety enclosure housing with Class A protective conformal coating

Height
7.3 Centimeter (cm)

Color
Siemens Safety Yellow / Industrial Slate Gray accents (uses a CC01 module color label)

Siemens, SIPLUS extreme, 6AG1136-6DC00-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

Siemens, SIPLUS extreme, 6AG1136-6DC00-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC About

This Siemens SIPLUS extreme fail-safe digital output module, model number 6AG1136-6DC00-2CA0, delivers an 8-channel high-feature configuration (F-DQ 8x24VDC/0.5A PP HF) utilizing protective PP-switching transistor technology. Operating seamlessly on a 1-phase, 24 V DC control voltage supply, it controls safety-related actuators rather than functioning as a motor drive, which leaves it without a standalone mechanical kW/HP power rating. Engineered from the core 6ES7136-6DC00-0CA0 design, it incorporates a specialized protective conformal coating to firmly sustain functional safety compliance up to Category 4, PL e, and SIL 3 within severe industrial environment temperatures between -30 C and +60 C.
