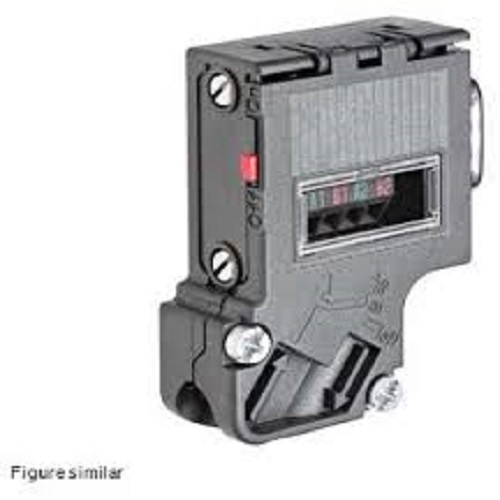

Siemens, SIPLUS DP, 6AG1972-0BA42-7XA0, RS 485 Bus Connector (Up to 12 Mbit/s), Single-phase, 24 V DC

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS DP, 6AG1972-0BA42-7XA0, RS 485 Bus Connector (Up to 12 Mbit/s), Single-phase, 24 V DC Specification

Automation Grade
SIPLUS Extreme (Ruggedized Harsh Environment)

Application
Connecting PROFIBUS nodes/stations to bus cables

Weight
0.044 Kilograms (kg)

Sensor Type
Field Sensor/Actuator node station link

Warranty
Standard Siemens Manufacturer Warranty

Speed Range
9.6 kbit/s to 12 Mbit/s network transmission

Control Type
Data Communication Network Link

Remote Control
Yes

Features
35 inclined cable outlet, terminating resistor, without PG socket

Connectivity Type
9-pin Sub-D Connector / Screw Terminals

Drive Type
Screw Joint Connector Mechanism

IP Rating
IP20 Protection Class

Mounting Type
Direct plug connection onto 9-pin Sub-D ports

Phase
Not Applicable (DC System Connection)

Processor Type
Not Applicable (Passive Interface Adaptor)

Usage
Severe weather / corrosive gas bus connection

Material
Heavy-duty plastic enclosure

Power
24 Volt (v)

Size
Compact Node Adaptor Profile

Temperature
-40 C to 70 C Celsius (oC)

Height
5.40 Centimeter (cm)

Voltage
24 Volt (v)

Product Type
SIPLUS DP PROFIBUS Connector Plug

Color
Industrial Siemens Black & Slate Grey

Width
1.58 Centimeter (cm)

Length
3.95 Centimeter (cm)

Siemens, SIPLUS DP, 6AG1972-0BA42-7XA0, RS 485 Bus Connector (Up to 12 Mbit/s), Single-phase, 24 V DC Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

Siemens, SIPLUS DP, 6AG1972-0BA42-7XA0, RS 485 Bus Connector (Up to 12 Mbit/s), Single-phase, 24 V DC About

The Siemens SIPLUS DP ruggedized PROFIBUS bus connector (model number 6AG1972-0BA42-7XA0) is an industrial network hardware component engineered for connecting field nodes to localized data highways under extreme environmental conditions. Running on an auxiliary operational supply rating of 24 V DC over an RS 485 physical interface, it establishes a reliable single-phase reference line path for network transmissions scaling from 9.6 kbit/s up to 12 Mbit/s. This specialized, conformal-coated device features an extended operating temperature range of -40 to +70 C, an inclined 35-degree cable outlet built without a PG programming socket, and comes natively equipped with an integrated switchable terminating resistor with an isolating function to smoothly manage localized automation architectures.
