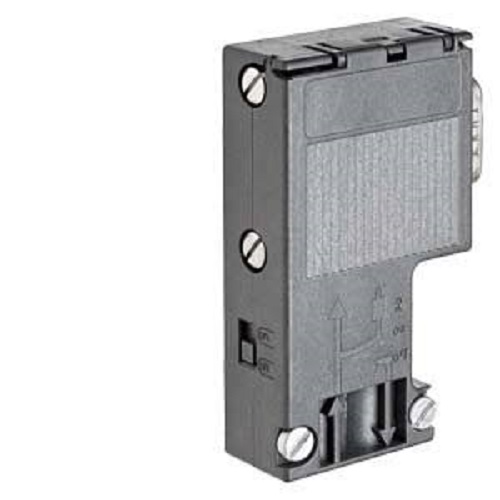

Siemens, SIPLUS DP, 6AG1972-0BA12-2XA0, RS 485 Bus Connector (Up to 12 Mbit/s), Single-phase, 24 V DC

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS DP, 6AG1972-0BA12-2XA0, RS 485 Bus Connector (Up to 12 Mbit/s), Single-phase, 24 V DC Specification

Application
Connecting PROFIBUS nodes to bus cables

Phase
Not Applicable (DC System Connection)

Remote Control
Yes

Drive Type
Screw Joint Connector Mechanism

Sensor Type
Field Sensor/Actuator node station link

Mounting Type
Standard Siemens Manufacturer Warranty

Control Type
Data Communication Network Link

Automation Grade
SIPLUS Extreme (Harsh Environment Industrial)

Features
90 cable outlet, connectable terminating resistor

Weight
0.01 Kilograms (kg)

Warranty
Standard Siemens Manufacturer Warranty

Processor Type
Not Applicable (Passive Interface Adaptor)

Speed Range
9.6 kbit/s to 12 Mbit/s network transmission

Connectivity Type
9-pin Sub-D Connector / Screw Terminals

IP Rating
IP20 Protection Class

Usage
Corrosive gas/severe weather bus connection

Material
Thermoplastic plastic housing

Size
Compact Node Adaptor Profile

Power
24 Volt (v)

Height
6.40 Centimeter (cm)

Temperature
-40 C to 70 C Celsius (oC)

Product Type
SIPLUS DP PROFIBUS Connector Plug

Voltage
24 Volt (v)

Color
Industrial Siemens Black & Slate Grey

Length
3.56 Centimeter (cm)

Width
1.58 Centimeter (cm)

Siemens, SIPLUS DP, 6AG1972-0BA12-2XA0, RS 485 Bus Connector (Up to 12 Mbit/s), Single-phase, 24 V DC Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

Siemens, SIPLUS DP, 6AG1972-0BA12-2XA0, RS 485 Bus Connector (Up to 12 Mbit/s), Single-phase, 24 V DC About

The Siemens SIPLUS DP ruggedized PROFIBUS bus connector (model number 6AG1972-0BA12-2XA0) is an industrial network hardware component engineered for connecting field nodes to localized data highways under harsh environmental conditions. Running on an auxiliary operational supply rating of 24 V DC over an RS 485 physical interface, it establishes a reliable single-phase reference line path for network transmissions scaling from 9.6 kbit/s up to 12 Mbit/s. This specialized, conformal-coated device features a space-saving 90-degree cable outlet built without a PG programming socket and comes natively equipped with an integrated switchable terminating resistor with an isolating function to smoothly manage localized automation architectures.
