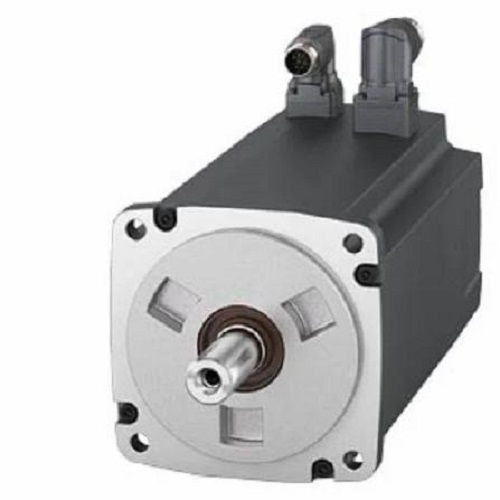

Siemens, SIMOTICS S-1FL2, 1FL2306-4AC11-0MB0, 1.5 kW, 3-Phase, 400V.
Siemens, SIMOTICS S-1FL2, 1FL2306-4AC11-0MB0, 1.5 kW, 3-Phase, 400V.
images Send Inquiry
Request To Call Back

Siemens, SIMOTICS S-1FL2, 1FL2306-4AC11-0MB0, 1.5 kW, 3-Phase, 400V.

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Siemens, SIMOTICS S-1FL2, 1FL2306-4AC11-0MB0, 1.5 kW, 3-Phase, 400V. Specification

  • Horse Power
  • 2.01 HP (Equivalent)
  • Power Rating
  • 1.50 kW
  • Efficacy
  • High Dynamics / Precision
  • Bearing Type
  • Deep Groove Ball Bearing
  • Voltage
  • 380 V ... 480 V Volt (v)
  • Cooling Method
  • Natural Cooling / Ambient Air
  • Standard
  • CE / RoHS / EAC
  • Poles Number
  • 9
  • Torque
  • 7.16 N-m
  • Sealed Type
  • Mechanical Seal
  • Current Type
  • AC (Alternating Current)
  • Ambient Temperature
  • -15 C ... +40 C Celsius (oC)
  • Product Type
  • Synchronous Motor
  • Output Power
  • 1.50 kilovolt (kV)
  • Frequency (MHz)
  • 50 / 60 Hertz (HZ)
  • Protect Feature
  • Other
  • Speed
  • 3,000 RPM
  • Starting Type
  • Electric Start
  • Power
  • 1.50 kilovolt (kV)
  • Rated Voltage
  • 400 Volt (V)
  • Color
  • Anthracite RAL 7016
  • Dimension (L*W*H)
  • 22.62 cm x 13.00 cm x 13.00 cm Centimeter (cm)
  • Cable Type
  • MOTION-CONNECT 200 Shielded
  • Weight
  • 11.60 Kilograms (kg)
  • Display Type
  • N/A (No Integrated Screen)
  • Warranty
  • 12 Months (Standard)
  • Phase
  • Three Phase
  • Conductor
  • Copper (Internal Windings)
  • Features
  • Plain Shaft / With Integrated Holding Brake
  • Rated Current
  • 4.60 Ampere (amp)
  • Frequency
  • 50 / 60 Hertz (HZ)
  • Shaft Diameter
  • 2.20 Centimeter (cm)
  • Mounting Type
  • Flange Mount (IM B5 / V1 / V3)


Siemens, SIMOTICS S-1FL2, 1FL2306-4AC11-0MB0, 1.5 kW, 3-Phase, 400V. Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Siemens, SIMOTICS S-1FL2, 1FL2306-4AC11-0MB0, 1.5 kW, 3-Phase, 400V.

The Siemens SIMOTICS S-1FL2 series permanent-magnet synchronous servomotor, model 1FL2306-4AC11-0MB0, provides high-inertia operation tailored for precision motion workflows. It delivers a rated power output of 1.5 kW while running smoothly over a 400V 3-phase AC supply voltage. This reliable unit is equipped with a plain shaft (tolerance N), a built-in holding brake, an AM21bit absolute encoder angular connector, and a rugged IP65 protection rating with an integrated oil seal optimized for SINAMICS S200 drive matching.
