Siemens, SIMOTICS S-1FL2, 1FL2306-4AC01-0SB0

Siemens, SIMOTICS S-1FL2, 1FL2306-4AC01-0SB0

Send Inquiry

Request To Call Back

Siemens, SIMOTICS S-1FL2, 1FL2306-4AC01-0SB0

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMOTICS S-1FL2, 1FL2306-4AC01-0SB0 Specification

Poles Number
9

Sealed Type
Mechanical Seal

Standard
CE / RoHS / EAC

Voltage
380 V ... 480 V Volt (v)

Horse Power
2.01 HP (Equivalent)

Rated Voltage
400 Volt (V)

Rated Frequency
400 Hertz (HZ)

Efficacy
High Dynamics / Precision

Torque
7.16 N-m

Power Rating
1.50 kW

Cooling Method
Natural Cooling / Ambient Air

Bearing Type
Deep Groove Ball Bearing

Ambient Temperature
-15 C ... +40 C Celsius (oC)

Current Type
AC (Alternating Current)

Product Type
Synchronous Motor

Output Power
1.50 kilovolt (kV)

Frequency (MHz)
50 / 60 Hertz (HZ)

Protect Feature
Other

Speed
3,000 RPM

Starting Type
Electric Start

Power
1.50 kilovolt (kV)

Color
Anthracite RAL 7016

Usage & Applications
Shaft height: 6.50 cm

Cable Type
MOTION-CONNECT 200 Shielded

Dimension (L*W*H)
18.12 cm x 13.00 cm x 13.00 cm Centimeter (cm)

Weight
8.60 Kilograms (kg)

Phase
Three Phase

Display Type
N/A (No Integrated Screen)

Warranty
12 Months (Standard)

Frequency
50 / 60 Hertz (HZ)

Conductor
Copper (Internal Windings)

Features
With Shaft Key / Without Holding Brake

Rated Current
4.60 Ampere (amp)

Shaft Diameter
2.20 Centimeter (cm)

Mounting Type
Flange Mount (IM B5 / V1 / V3)

Siemens, SIMOTICS S-1FL2, 1FL2306-4AC01-0SB0 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMOTICS S-1FL2, 1FL2306-4AC01-0SB0

The Siemens SIMOTICS S-1FL2 series high-inertia permanent-magnet synchronous servomotor, model 1FL2306-4AC01-0SB0, provides precise motion control for modern industrial equipment. It delivers a reliable rated power output of 1.5 kW while operating smoothly across a 400V 3-phase AC power network. Engineered for optimal integration with matching SINAMICS S200 drives, this motor is configured without a holding brake and features a plain shaft (tolerance N), an AS21bit absolute encoder angular connector, and a rugged IP65 protection rating with an integrated oil seal. [1, 2, 3]

Siemens, SIMOTICS S-1FL2, 1FL2306-4AC01-0SB0

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Servo Motor Category

SIMOTICS S-1FL2 Medium Inertia Servo motor: 0.75 kW, 1.01 HP, 3000 RPM, 2.80 kg, 8.1x8.1x15.3 cm.

SIMOTICS S-1FL2 Medium Inertia Servo motor: 0.75 kW, 1.01 HP, 3000 RPM, 2.80 kg, 8.1x8.1x15.3 cm.

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Color : Industrial Anthracite Gray (RAL 7016)

Product Type : Synchronous Motor

Cable Type : AS17bit Dual Hybrid Connector

Output Power : 0.75 kilovolt (kV)

Get a Price/Quote

SIMOTICS S AC Servo Motor, 0.4kW, 0.54HP, 3000rpm, 1.4kg, 12.2x5x6cm

SIMOTICS S AC Servo Motor, 0.4kW, 0.54HP, 3000rpm, 1.4kg, 12.2x5x6cm

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Color : Industrial Anthracite Gray (RAL 7016)

Product Type : Synchronous Motor

Cable Type : Hybrid SingleCable Configuration

Output Power : 0.40 kilovolt (kV)

Get a Price/Quote

SIMOTICS S-1FL2 Medium Inertia Servo motor: 1.00 kW, 1.34 HP, 3000 RPM, 3.10 kg, 8.1x8.1x14.3 cm.

SIMOTICS S-1FL2 Medium Inertia Servo motor: 1.00 kW, 1.34 HP, 3000 RPM, 3.10 kg, 8.1x8.1x14.3 cm.

Price 29998.0 INR / Piece

Minimum Order Quantity : 1 Piece

Color : Industrial Anthracite Gray (RAL 7016)

Product Type : Synchronous Motor

Cable Type : AM21bit Dual Hybrid Connector

Output Power : 1.00 kilovolt (kV)

Get a Price/Quote

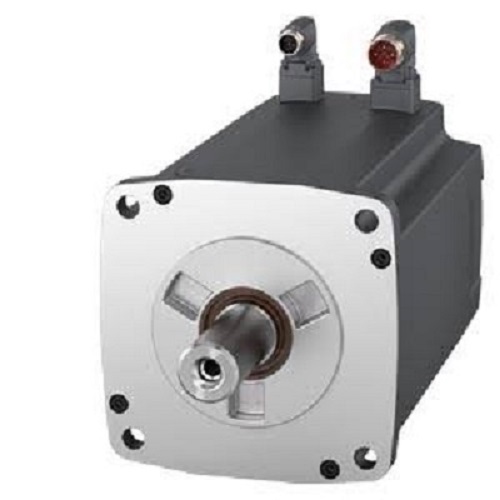

Siemens, SIMOTICS S-1FL2, 1FL2310-0AC01-0HB0, 2.5 kW, 3-Phase, 400V.
