Siemens, SIMATIC S7-300, 6ES7317-2FK14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC S7-300, 6ES7317-2FK14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

Mounting Type
S7-300 Rail Profile Mounting

Humidity
Max. 95% relative humidity (Non-condensing)

Operating Temperature
0 C to +60 C Celsius (oC)

Input Current
Max. 750 mA from 24V DC / Inrush current peaks at 4.0 A

Protection Level
IP20

Phase
N/A (Direct Current infrastructure alignment)

Efficiency
~4.65 W Typical Power Loss / Heat Dissipation

Rated Voltage
24 V DC Volt (V)

Usage
Industrial Safety Automation

Main Material

Condition
New

Size
4.0 cm Overall Width

Height
12.5 Centimeter (cm)

Application
High-security automation loops up to PL e (ISO 13849-1) / SIL3 (IEC 61508)

Product Type
SIMATIC S7-300 Fail-Safe High-Performance CPU

Weight
0.344 Kilograms (kg)

Dimension (L*W*H)
13.0 cm x 4.0 cm x 12.5 cm Centimeter (cm)

Color
Industrial Gray

Power Mode
Other

Width
4.0 Centimeter (cm)

Length
13.0 Centimeter (cm)

Voltage
24 V DC Volt (v)

Power Consumption
4.65 Watt (W)

Accessories
Micro Memory Card (MMC) required for operation (Ordered Separately)

Warranty
Standard Siemens Factory Warranty

Siemens, SIMATIC S7-300, 6ES7317-2FK14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMATIC S7-300, 6ES7317-2FK14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

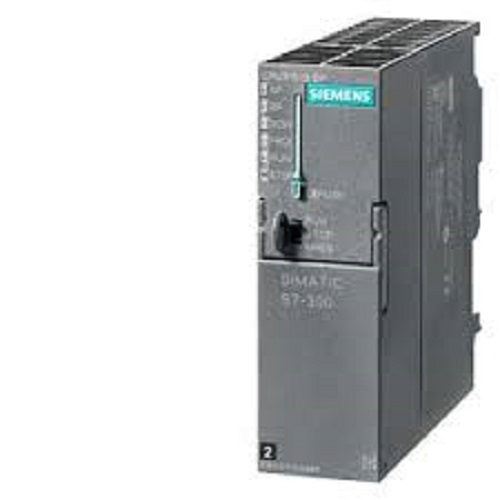

The Siemens SIMATIC S7-300 CPU 317F-2 PN/DP central processing unit (model number 6ES7317-2FK14-0AB0) is a high-performance modular, fail-safe controller engineered for demanding industrial processes requiring high-density functional safety architecture. It features 0 integrated digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). It relies entirely on external local backplane or distributed ET 200 nodes to connect to machinery safety loops.

Operating on a single-phase control arrangement backed by a standard 24 V DC voltage supply, this safety processor hosts an expanded 1.5 MB integrated work memory and requires a SIMATIC Micro Memory Card (MMC) for program execution. The CPU features a dual-interface networking layout: one combined MPI/PROFIBUS DP master/slave port (up to 12 Mbit/s) and an Industrial Ethernet PROFINET interface with an integrated 2-port switch. Utilizing the secure PROFIsafe communication profile over its bus systems, it runs safety-critical control loops up to PL e (ISO 13849-1) or SIL 3 (IEC 61508).
