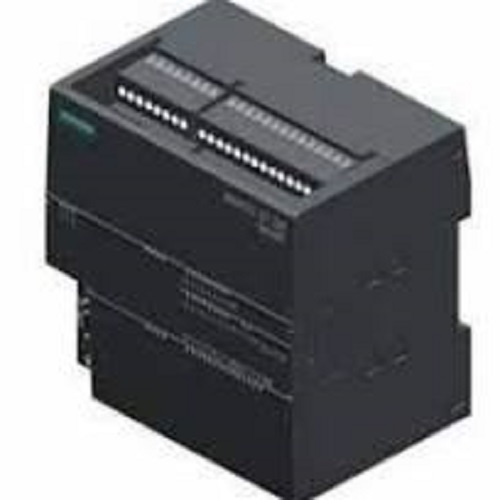

Siemens SIMATIC S7-200 SMART CPU SR60 Central Processing Unit, 85-264V AC Power Supply, 36 Digital Inputs 24V DC / 24 Relay Outputs 2A, 50 KB Program Memory.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens SIMATIC S7-200 SMART CPU SR60 Central Processing Unit, 85-264V AC Power Supply, 36 Digital Inputs 24V DC / 24 Relay Outputs 2A, 50 KB Program Memory. Specification

Phase
Single-Phase Line Network

Output Voltage
5 V to 30 V DC / 5 V to 250 V AC (Relay output) Volt (V)

Protection Level
IP20 Protection Rating

Mounting Type
35 mm Top-Hat DIN Rail or panel wall installation

Operating Temperature
0 C to +55 C equivalent industrial grade Celsius (oC)

Efficiency
Onboard I/O with High-Speed Counters & PROFINET

Humidity
Max. 95% operational humidity (non-condensing)

Rated Voltage
120 / 230 V AC operational rating Volt (V)

Input Current
Max 370 mA at 120 V AC / 16.3 A Inrush current

Frequency
47 Hz to 63 Hz line frequency range Hertz (HZ)

Usage
High-density industrial automation, machine builder systems

Main Material

Processing Type
Standard

Condition
New

Size
175 mm high-density micro-PLC footprint

Height
10.0 Centimeter (cm)

Function
36 DI / 24 DO processing up to 50 KB memory

Application
Packaging machinery, large standalone rigs, pump automation

Product Type
SIMATIC S7-200 SMART CPU Module

Weight
610 Grams (g)

Dimension (L*W*H)
8.1 x 17.5 x 10.0 cm Centimeter (cm)

Color
Industrial Gray

Power Mode
Other

Width
17.5 Centimeter (cm)

Voltage
85 V to 264 V AC Volt (v)

Length
8.1 Centimeter (cm)

Power Consumption
Max. 25 W power loss Watt (W)

Battery Life
Maintenance-free RTC backup (approx. 7 days buffer) Days

Accessories
CM01 Signal board, EM expansion modules, microSD

Warranty
Standard manufacturer/distributor warranty

Siemens SIMATIC S7-200 SMART CPU SR60 Central Processing Unit, 85-264V AC Power Supply, 36 Digital Inputs 24V DC / 24 Relay Outputs 2A, 50 KB Program Memory. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens SIMATIC S7-200 SMART CPU SR60 Central Processing Unit, 85-264V AC Power Supply, 36 Digital Inputs 24V DC / 24 Relay Outputs 2A, 50 KB Program Memory.

The Siemens 6ES7288-1SR60-0AA1 is a SIMATIC S7-200 SMART CPU SR60 PLC designed for medium-sized machine and industrial automation applications. It operates on an 85264 V AC power supply and features 36 digital inputs (24 V DC), 24 relay outputs (2 A), 50 KB program/data memory, built-in high-speed counters and pulse outputs, an integrated Ethernet port with web server support, optional microSD card support, and programming with STEP 7 Micro/WIN SMART. It is DIN rail mountable and ideal for standalone machine control and OEM automation systems.
