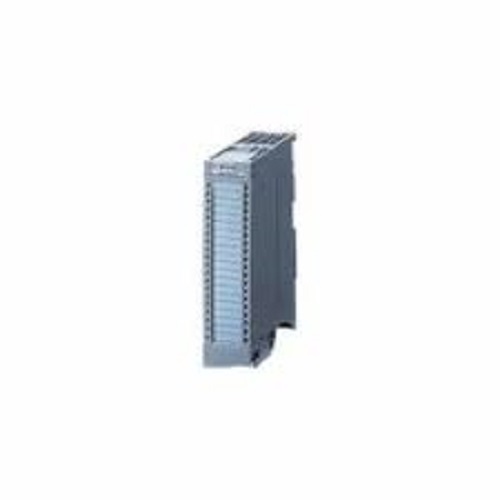

Siemens, SIMATIC S7-1500, 6ES7540-1AB00-0AA0, N/A (Serial Communication Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC S7-1500, 6ES7540-1AB00-0AA0, N/A (Serial Communication Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC. Specification

Mounting Type
SIMATIC S7-1500 Mounting Rail installation

Operating Temperature
0 C to +60 C (Horizontal deployment standard) Celsius (oC)

Efficiency
Max cable length 1200 m (RS422/485) for long runs

Humidity
Standard non-condensing industrial operation limits

Phase
Radio interference suppression Class B equivalent

Rated Voltage
15 V DC backplane interface Volt (V)

Input Current
Max 45 mA consumption from backplane bus

Protection Level
IP20 Protection Rating

Usage
Serial point-to-point communication, legacy linking

Main Material

Processing Type
Standard

Size
35 mm standard communication profile

Condition
New

Function
RS-422/485 PtP connection (Max 19.2 kbit/s)

Height
14.7 Centimeter (cm)

Application
Modbus RTU masters, barcode readers, serial scales

Product Type
SIMATIC S7-1500 Communication Module

Weight
290 Grams (g)

Dimension (L*W*H)
12.9 x 3.5 x 14.7 cm Centimeter (cm)

Color
Industrial Gray / Dark Anthracite

Power Mode
Other

Width
3.5 Centimeter (cm)

Length
12.9 Centimeter (cm)

Voltage
15 V DC (Internal via backplane bus) Volt (v)

Power Consumption
Typical 0.65 W backplane bus / 1.1 W power loss Watt (W)

Accessories
15-pin Sub-D female connector (onboard)

Warranty
Standard manufacturer/distributor warranty

Siemens, SIMATIC S7-1500, 6ES7540-1AB00-0AA0, N/A (Serial Communication Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMATIC S7-1500, 6ES7540-1AB00-0AA0, N/A (Serial Communication Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC.

The Siemens SIMATIC S7-1500 series serial communication module, model number 6ES7540-1AB00-0AA0, establishes Point-to-Point data links in automated network cells. Acting strictly as an interface expansion unit, it lacks a traditional kw/hp rating and connects directly to a 24 V DC supply voltage. It receives operational power over a single-phase backplane bus line, managing communication protocols like Freeport, 3964(R), and USS via its integrated RS422/RS485 15-pin D-sub port at speeds up to 19.2 kbit/s.
