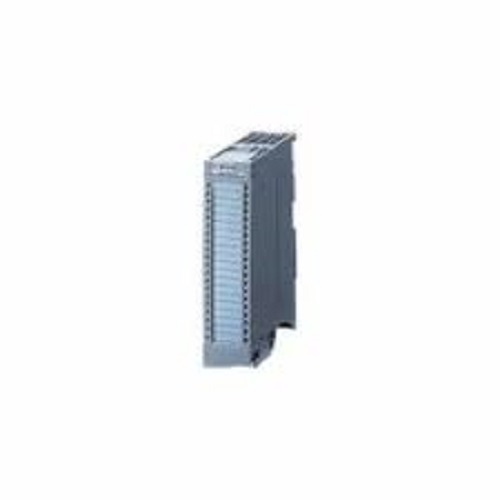

Siemens, SIMATIC S7-1500, 6ES7534-7QE00-0AB0, N/A (Analog Input/Output Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC S7-1500, 6ES7534-7QE00-0AB0, N/A (Analog Input/Output Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC. Specification

Humidity
Standard non-condensing industrial operation limits

Efficiency
Accurate 0.3% operational limit for high-precision

Frequency
Electrical interference sync at 50 / 60 Hz Hertz (HZ)

Phase
DC current system

Rated Voltage
24 V DC (Permissible range: 19.2 to 28.8 V DC) Volt (V)

Operating Temperature
-20 C to +60 C (Horizontal deployment) Celsius (oC)

Output Voltage
Configurable: 10V, 0 10V / Current: 4-20mA Volt (V)

Input Current
Max 200 mA current consumption from 24V DC

Mounting Type
SIMATIC S7-1500 Mounting Rail installation

Protection Level
IP20 Protection Rating

Main Material

Usage
Combined analog logging and actuator control loops

Processing Type
Standard

Size
25 mm slim space-saving analog footprint

Condition
New

Height
14.7 Centimeter (cm)

Function
4 Analog Inputs / 2 Analog Outputs sync logic

Product Type
SIMATIC S7-1500 Analog I/O Mix Module

Application
Transducers, PID control loops, valve positioning

Dimension (L*W*H)
12.9 x 2.5 x 14.7 cm Centimeter (cm)

Weight
400 Grams (g)

Power Mode
Other

Color
Industrial Gray / Dark Anthracite

Voltage
24 V DC Volt (v)

Width
2.5 Centimeter (cm)

Length
12.9 Centimeter (cm)

Power Consumption
Typical 0.7 W to 2.1 W total module power loss Watt (W)

Accessories
Push-In front connector, Shield bracket

Warranty
Standard manufacturer/distributor warranty

Siemens, SIMATIC S7-1500, 6ES7534-7QE00-0AB0, N/A (Analog Input/Output Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMATIC S7-1500, 6ES7534-7QE00-0AB0, N/A (Analog Input/Output Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC.

The Siemens SIMATIC S7-1500 series analog input/output module, model number 6ES7534-7QE00-0AB0, provides unified processing for data sensing and actuator regulation. Operating as a versatile mixed I/O module, it lacks a traditional kw/hp rating and connects directly to a 24 V DC supply voltage. Powering its electronics over a single-phase feed path, it features 4 analog inputs and 2 analog outputs operating at 16-bit resolution to capture or drive voltage and current signals.
