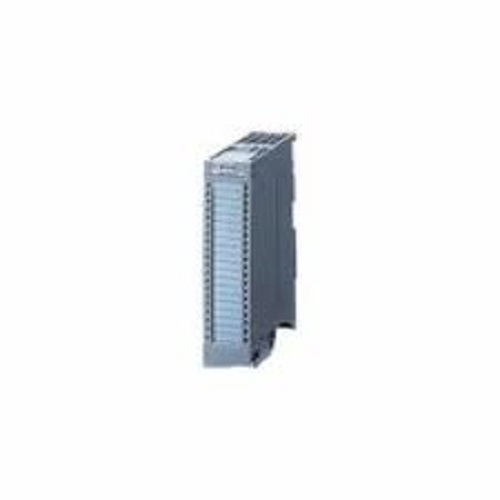

Siemens, SIMATIC S7-1500, 6ES7522-1BF00-0AB0, N/A (Digital Output Module), 1-Phase (via 24V DC Powertrain Line), 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC S7-1500, 6ES7522-1BF00-0AB0, N/A (Digital Output Module), 1-Phase (via 24V DC Powertrain Line), 24 V DC. Specification

Efficiency
Supports load group shutdown up to SIL2 / PL d safety

Protection Level
IP20 Protection Rating

Frequency
Max. 100 Hz output switching (Resistive load) Hertz (HZ)

Phase
DC current system

Humidity
Standard non-condensing industrial operation limits

Input Current
Max 40 mA consumption from backplane bus

Operating Temperature
0 C to +60 C (Horizontal deployment standard) Celsius (oC)

Mounting Type
SIMATIC S7-1500 Mounting Rail installation

Output Voltage
24 V DC (2.0 A max rated current per channel) Volt (V)

Rated Voltage
24 V DC (Permissible range: 19.2 to 28.8 V DC) Volt (V)

Usage
Actuator switching, proportional valve controls

Main Material

Processing Type
Standard

Condition
New

Size
35 mm high-performance engineering width

Function
8 Digital Outputs (2 channels support PWM)

Height
14.7 Centimeter (cm)

Product Type
SIMATIC S7-1500 Digital Output Module

Application
Solenoid valves, contactors, heating control rigs

Weight
240 Grams (g)

Dimension (L*W*H)
12.9 x 3.5 x 14.7 cm Centimeter (cm)

Power Mode
Other

Color
Industrial Gray / Dark Anthracite

Voltage
24 V DC Volt (v)

Width
3.5 Centimeter (cm)

Length
12.9 Centimeter (cm)

Power Consumption
Typical 5.6 W power loss (6.8 W for PWM mode) Watt (W)

Accessories
Front connector (Screw/Push-In) ordered separately

Warranty
Standard manufacturer/distributor warranty

Siemens, SIMATIC S7-1500, 6ES7522-1BF00-0AB0, N/A (Digital Output Module), 1-Phase (via 24V DC Powertrain Line), 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMATIC S7-1500, 6ES7522-1BF00-0AB0, N/A (Digital Output Module), 1-Phase (via 24V DC Powertrain Line), 24 V DC.

The Siemens SIMATIC S7-1500 series digital output module, model number 6ES7522-1BF00-0AB0, offers reliable control over actuators in automated industrial plants. Functioning purely as a signal processing component, it does not carry an applicable kw/hp rating and connects directly to a 24 V DC supply voltage. Operating on a single-phase 24V power line, the hardware contains 8 high-feature transistor output channels split into isolated groups to deliver diagnostics and support pulse width modulation.
