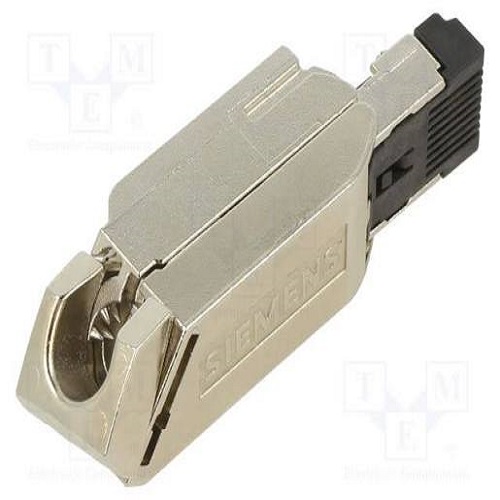

Siemens, SIMATIC NET, 6GK1901-1BB30-0AA0, IE FC RJ45 Plug 145 (2x2), N/A (Passive Networking Data Connector), 500 V AC Core-to-Core

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC NET, 6GK1901-1BB30-0AA0, IE FC RJ45 Plug 145 (2x2), N/A (Passive Networking Data Connector), 500 V AC Core-to-Core Specification

Warranty
Standard Siemens Manufacturer Warranty

Control Type
Data Transmission Networking Link

Automation Grade
SIMATIC NET Industrial Communication Architecture

Mounting Type
Direct mating onto standard host RJ45 communication ports

Application
Direct connection to 2x2 Industrial Ethernet FC TP cables

Features
Silicon-free, integrated strain relief, FTP foil shielding

Speed Range
10 Mbit/s and 100 Mbit/s fast transfer rate

Drive Type
145 angled inclined cable outlet entry mechanism

Weight
0.035 Kilograms (kg)

Sensor Type
Links field controllers, remote I/O terminal lines, & sensors

Connectivity Type
Integrated cut-and-clamp FastConnect IDC contacts

IP Rating
IP20 Protection Index Classification

Remote Control
Yes

Usage
Field connection for error-minimising fast field wiring assemblies

Material
Rugged, heavy-duty industrial metal enclosure

Size
Compact 145-degree angle profile housing unit

Temperature
-40 C to 85 C Celsius (oC)

Height
1.60 Centimeter (cm)

Product Type
Industrial Ethernet FastConnect RJ45 Data Connector

Color
Industrial Silver Metallic & Teal Finish

Length
5.56 Centimeter (cm)

Width
1.39 Centimeter (cm)

Siemens, SIMATIC NET, 6GK1901-1BB30-0AA0, IE FC RJ45 Plug 145 (2x2), N/A (Passive Networking Data Connector), 500 V AC Core-to-Core About

The Siemens SIMATIC NET Industrial Ethernet FastConnect RJ45 plug 145 (2x2) data connector (model number 6GK1901-1BB30-0AA0) is a ruggedized field assembly plug engineered for reliable network deployment. Built without standalone operational active power requirements, it carries a 500 V AC core-to-core dielectric insulation rating and features an error-minimizing, integrated cut-and-clamp termination layout. The heavy-duty metal housing natively integrates a space-saving 145-degree angled cable outlet design and a shielding mechanism optimized to smoothly manage localized automation architectures and 10/100 Mbit/s Cat5 network runs.
