Siemens, SIMATIC DP, 6ES7972-0BB52-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Siemens, SIMATIC DP, 6ES7972-0BB52-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

  • Humidity
  • Max. 95% relative humidity (Non-condensing)
  • Mounting Type
  • 9-Pin Sub-D Male/Female Plugging Link to Node Terminal
  • Efficiency
  • Highly efficient data trace bridge with negligible insertion loss
  • Operating Temperature
  • 0 C to +60 C Celsius (oC)
  • Rated Voltage
  • 5 V DC Volt (V)
  • Input Current
  • Max. 10 mA (Traced internally from active node)
  • Protection Level
  • IP20
  • Main Material
  • Usage
  • Industrial Automation Networks
  • Size
  • 1.58 cm Overall Width
  • Condition
  • New
  • Height
  • 5.9 Centimeter (cm)
  • Function
  • RS485 Segment Connecting Terminal with Terminating Resistor and PG Interface
  • Product Type
  • PROFIBUS DP Bus Connector Interface Block with Programming Interface
  • Application
  • Connects standard PROFIBUS nodes via fast installation while keeping programming access
  • Dimension (L*W*H)
  • 3.56 cm x 1.58 cm x 5.9 cm Centimeter (cm)
  • Weight
  • 0.045 Kilograms (kg)
  • Power Mode
  • Other
  • Color
  • Industrial Gray
  • Length
  • 3.56 Centimeter (cm)
  • Width
  • 1.58 Centimeter (cm)
  • Voltage
  • 4.75 V DC Volt (v)
  • Accessories
  • Integrated Slide-Switch for Active Terminal Resistor Isolation
  • Warranty
  • Standard Siemens Factory Warranty


Siemens, SIMATIC DP, 6ES7972-0BB52-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Siemens, SIMATIC DP, 6ES7972-0BB52-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

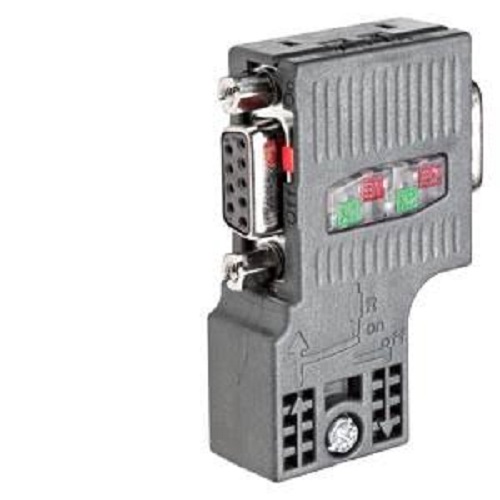

The Siemens SIMATIC DP PROFIBUS bus connector (model number 6ES7972-0BB52-0XA0) is a specialized networking connection plug featuring 0 digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Operating inside a single-phase automated network drawing low-voltage signaling power via standard 24 V DC communication loops, it interfaces physical PROFIBUS nodes directly onto an RS-485 fieldbus network.
The compact plug incorporates a space-saving 90-degree angled cable outlet and measures 15.8 mm width, 59 mm height, and 35.6 mm depth. It utilizes toolless, time-saving FastConnect insulation displacement terminals to connect up to two separate 2-core FastConnect PROFIBUS cables without needing to pre-strip individual wire cores. Supporting transmission speeds up to 12 Mbit/s, it features an integrated, user-accessible switchable terminating resistor with isolating functionality to eliminate data reflections at network ends. Crucially, it includes an integrated PG programming socket, allowing engineering staff to attach programming laptops or diagnostic tools directly to the node without interrupting bus communications.
