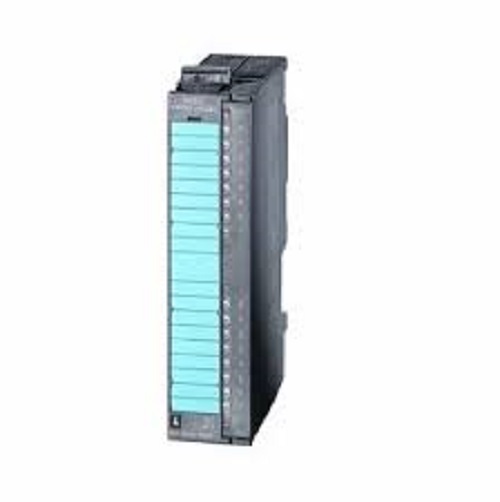

Siemens SIMATIC S7-1500 TM Count 2x24V Counter Module, 24V DC, 2 channels for 24V incremental or pulse encoders up to 200 kHz.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens SIMATIC S7-1500 TM Count 2x24V Counter Module, 24V DC, 2 channels for 24V incremental or pulse encoders up to 200 kHz. Specification

Input Current
Permissible supply range: 19.2 V to 28.8 V DC

Frequency
Counting frequency max. up to 200 kHz Kilohertz ( KHZ )

Efficiency
Ultra-precise 32-bit counting with Isochronous mode

Mounting Type
SIMATIC S7-1500 Mounting Rail installation

Rated Voltage
24 V DC Volt (V)

Phase
Radio interference suppression Class B equivalent

Protection Level
IP20 Protection Rating

Output Voltage
24 V DC (Transistor outputs) Volt (V)

Humidity
Standard non-condensing industrial operation limits

Operating Temperature
0 C to +60 C (Horizontal deployment standard) Celsius (oC)

Main Material

Usage
High-speed counting, frequency measurement, pulse analysis

Processing Type
Standard

Condition
New

Size
35 mm high-performance engineering width

Function
2 Channels, 3 DI / 2 DQ per channel count tracking

Height
14.7 Centimeter (cm)

Product Type
SIMATIC S7-1500 TM Count 2x24V Module

Application
Flow meters, positioning tracks, conveyor syncing

Weight
250 Grams (g)

Dimension (L*W*H)
12.9 x 3.5 x 14.7 cm Centimeter (cm)

Power Mode
Other

Color
Industrial Gray / Dark Anthracite

Length
12.9 Centimeter (cm)

Width
3.5 Centimeter (cm)

Voltage
24 V DC Volt (v)

Accessories
24V Incremental or Pulse Encoders

Warranty
Standard manufacturer/distributor warranty

Siemens SIMATIC S7-1500 TM Count 2x24V Counter Module, 24V DC, 2 channels for 24V incremental or pulse encoders up to 200 kHz. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens SIMATIC S7-1500 TM Count 2x24V Counter Module, 24V DC, 2 channels for 24V incremental or pulse encoders up to 200 kHz.

The Siemens 6ES7550-1AA00-0AB0 is a SIMATIC S7-1500 TM Count 2x24V technology module designed for high-speed counting and position detection applications. It features 2 counter channels for 24 V incremental encoders or pulse encoders, 3 digital inputs and 2 digital outputs per channel, operates on a 24 V DC power supply, and supports high-speed counting up to 800 kHz. The module is programmable with TIA Portal and is ideal for motion control, encoder feedback, and industrial automation systems.
