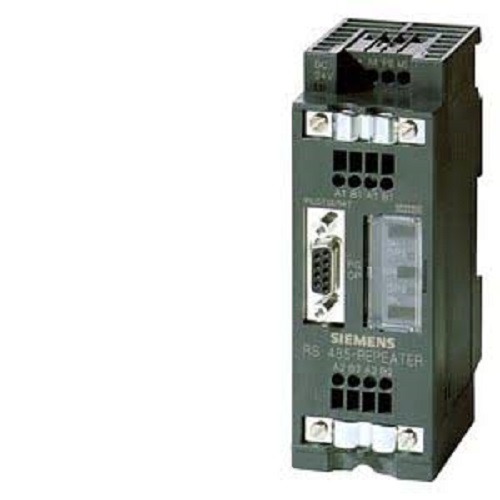

Siemens, SIMATIC DP, 6ES7972-0AA01-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Siemens, SIMATIC DP, 6ES7972-0AA01-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

  • Rated Voltage
  • 24 V DC Volt (V)
  • Efficiency
  • Built-in electrical isolation between bus segments to suppress signal noise
  • Humidity
  • Max. 95% relative humidity at 25 C (Non-condensing)
  • Input Current
  • Max 200 mA (without PG/OP socket load) | Max 300 mA (with 24V socket load)
  • Protection Level
  • IP20
  • Operating Temperature
  • 0 C to +60 C Celsius (oC)
  • Mounting Type
  • S7-300 Rail System / Standard 35 mm DIN Rail adapter mount
  • Output Voltage
  • 5 V DC Volt (V)
  • Main Material
  • Usage
  • Industrial Network Infrastructure
  • Condition
  • New
  • Size
  • 4.5 cm Overall Panel Width
  • Height
  • 12.8 Centimeter (cm)
  • Function
  • Triggers automatic transmission rate synchronization across paths
  • Product Type
  • SIMATIC DP Industrial RS485 Bus Repeater
  • Application
  • Expands networks up to 31 additional nodes and extends cable distances
  • Weight
  • 0.289 Kilograms (kg)
  • Dimension (L*W*H)
  • 6.7 cm x 4.5 cm x 12.8 cm Centimeter (cm)
  • Color
  • Industrial Gray / Black Accent
  • Power Mode
  • Other
  • Voltage
  • 24 V DC Volt (v)
  • Width
  • 4.5 Centimeter (cm)
  • Length
  • 6.7 Centimeter (cm)
  • Power Consumption
  • 0 Watt (W)
  • Accessories
  • Integrated PG/OP Diagnostic Interface Port Socket
  • Warranty
  • Standard Siemens Factory Warranty


Siemens, SIMATIC DP, 6ES7972-0AA01-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Siemens, SIMATIC DP, 6ES7972-0AA01-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

The Siemens SIMATIC DP RS-485 repeater (model number 6ES7972-0AA01-0XA0) is a specialized network infrastructure component featuring 0 digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Running within a single-phase automated infrastructure, it relies on a standard external 24 V DC voltage supply to drive its internal signal processing circuits.
This hardware module acts as an active physical bridge to extend transmission distance, regenerate signal strength, and couple separate network segments within PROFIBUS or MPI fieldbus topologies. It accommodates a maximum transmission speed of up to 12 Mbit/s and supports up to 31 network nodes per segment. Built with an IP20 protection class, the module features dual isolated terminal blocks for segment cables, built-in diagnostic status LEDs, and integrated switchable terminating resistors to facilitate segment isolation during commissioning loops.
Siemens, SIMATIC DP, 6ES7972-0AA01-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Siemens Plc Category

Siemens SIMATIC S7-1500 CPU 1516-3 PN/DP Central Processing Unit. 1 MB Program Memory, 5 MB Data Memory, 10 ns Bit Performance, Integrated PROFINET IRT Interface 2 Port Switch

Siemens SIMATIC S7-1500 CPU 1516-3 PN/DP Central Processing Unit. 1 MB Program Memory, 5 MB Data Memory, 10 ns Bit Performance, Integrated PROFINET IRT Interface 2 Port Switch

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Power Mode : Other

Condition : New

Application : Sophisticated manufacturing, network routing, plant sync

Efficiency : Ultrafast 10 ns bit processing execution speed

Get a Price/Quote
Siemens, SIMATIC S7-1500, 6ES7531-7KF00-0AB0, N/A (Analog Input Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC.

Siemens, SIMATIC S7-1500, 6ES7531-7KF00-0AB0, N/A (Analog Input Module), 1-Phase (via 24V DC Backplane/Infeed Line), 24 V DC.

Price 29999.0 INR / Piece

Minimum Order Quantity : 1 Piece

Power Mode : Other

Condition : New

Application : Transducers, Pt100 sensors, temperature loops

Efficiency : Onboard diagnostics for wire break and short circuit

Get a Price/Quote

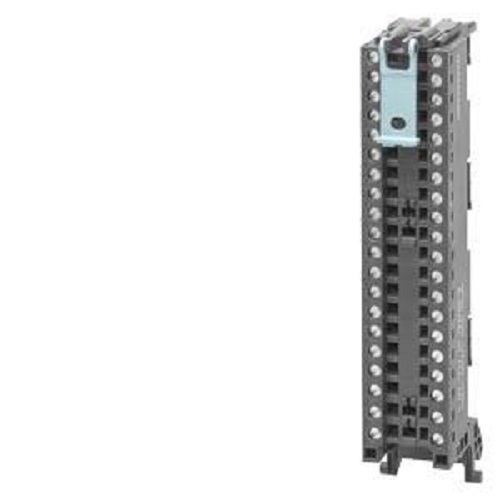

Siemens, SIMATIC S7-1500, 6ES7592-1BM00-0XB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC / 230 V AC.
