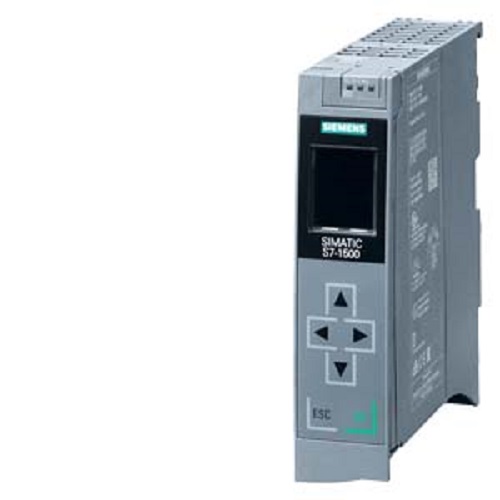

Siemens SIMATIC S7-1500 CPU 1516-3 PN/DP Central Processing Unit. 1 MB Program Memory, 5 MB Data Memory, 10 ns Bit Performance, Integrated PROFINET IRT Interface 2 Port Switch

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens SIMATIC S7-1500 CPU 1516-3 PN/DP Central Processing Unit. 1 MB Program Memory, 5 MB Data Memory, 10 ns Bit Performance, Integrated PROFINET IRT Interface 2 Port Switch Specification

Operating Temperature
0 C to +60 C (Horizontal installation) Celsius (oC)

Humidity
Standard non-condensing industrial operation limits

Phase
Radio interference suppression Class B equivalent

Protection Level
IP20 Protection Rating

Efficiency
Ultra-fast 10 ns bit processing execution speed

Input Current
Permissible range: 19.2 V to 28.8 V DC

Mounting Type
SIMATIC S7-1500 Mounting Rail installation

Rated Voltage
24 V DC Volt (V)

Usage
Large-scale industrial automation, plant-wide control systems

Main Material

Processing Type
Standard

Condition
New

Size
70 mm advanced multi-interface layout

Height
14.7 Centimeter (cm)

Function
1 MB Prog / 5 MB Data complex synchronization logic

Product Type
SIMATIC S7-1500 Standard CPU

Application
Sophisticated manufacturing, network routing, plant sync

Weight
830 Grams (g)

Dimension (L*W*H)
12.9 x 7.0 x 14.7 cm Centimeter (cm)

Color
Industrial Gray / Dark Anthracite

Power Mode
Other

Width
7.0 Centimeter (cm)

Length
12.9 Centimeter (cm)

Voltage
24 V DC Volt (v)

Power Consumption
Max. 0.85 A rated / Typical 7 W power loss Watt (W)

Battery Life
Maintenance-free backup without battery (retentive memory) Years

Accessories
SIMATIC Memory Card required for operation

Warranty
Standard manufacturer/distributor warranty

Siemens SIMATIC S7-1500 CPU 1516-3 PN/DP Central Processing Unit. 1 MB Program Memory, 5 MB Data Memory, 10 ns Bit Performance, Integrated PROFINET IRT Interface 2 Port Switch Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens SIMATIC S7-1500 CPU 1516-3 PN/DP Central Processing Unit. 1 MB Program Memory, 5 MB Data Memory, 10 ns Bit Performance, Integrated PROFINET IRT Interface 2 Port Switch

The Siemens 6ES7516-3AN01-0AB0 is a SIMATIC S7-1500 CPU 1516-3 PN/DP central processing unit designed for high-performance automation applications. It features 1 MB program memory, 5 MB data memory, an integrated PROFINET IRT interface with a 2-port switch, a second PROFINET RT interface, a PROFIBUS DP interface, and 10 ns bit processing performance. The CPU requires a SIMATIC Memory Card, is programmable with TIA Portal, and is ideal for machine control, process automation, and industrial networking. This model is a spare part and has been replaced by the 6ES7516-3AP03-0AB0.
