Siemens, SCALANCE / SIMATIC NET, 6GK7377-1AA00-0AA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SCALANCE / SIMATIC NET, 6GK7377-1AA00-0AA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

Rated Voltage
24 V DC Volt (V)

Humidity
Max. 95% relative humidity (Non-condensing structural limits)

Protection Level
IP20

Mounting Type
S7-300 Rail Profile Mounting (Direct expansion block fitment)

Operating Temperature
0 C to +60 C Celsius (oC)

Efficiency
Store-and-Forward architecture with built-in LED error diagnostic tracing

Input Current
Typ. 0.07 A (70 mA current consumption load metrics)

Main Material

Usage
Industrial Communications & Machine Networking

Size
4.0

Condition
New

Function
4-Port Compact Unmanaged Switch Expansion Card

Height
12.5 Centimeter (cm)

Application
Connects a SIMATIC S7-300 CPU and up to 3 additional nodes to Industrial Ethernet

Product Type
SIMATIC NET Unmanaged Compact Switch Module (CSM 377)

Dimension (L*W*H)
11.8 cm x 4.0 cm x 12.5 cm Centimeter (cm)

Weight
0.20 Kilograms (kg)

Color
Industrial Gray

Power Mode
Other

Voltage
24 V DC Volt (v)

Width
4.0 Centimeter (cm)

Length
11.8 Centimeter (cm)

Accessories
Includes Electronic Equipment Manual on CD-ROM

Warranty
Standard Siemens Factory Warranty

Siemens, SCALANCE / SIMATIC NET, 6GK7377-1AA00-0AA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SCALANCE / SIMATIC NET, 6GK7377-1AA00-0AA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

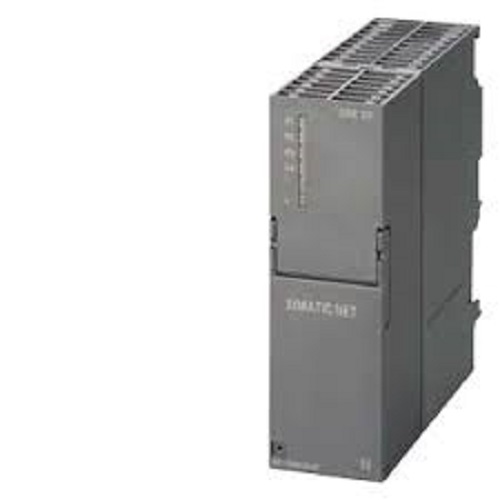

The Siemens SCALANCE CSM 377 compact switch module (model number 6GK7377-1AA00-0AA0) is an unmanaged Industrial Ethernet switch accessory featuring 0 digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). It functions as a structural networking component designed in the standard S7-300 module form factor to mount cleanly onto an S7-300 profile rail.

Operating within a single-phase automated control layout, it draws a low-voltage electrical feed from an external 24 V DC terminal connection. The module incorporates 4 electrical RJ45 ports running at transmission speeds of 10/100 Mbit/s. It allows users to connect a SIMATIC S7-300 central processing unit alongside up to three additional field network nodes (such as operator panels or programming devices) to an Industrial Ethernet network loop without taking up external DIN rail space outside the primary PLC rack.
