6AG1322-1CF00-7AA0) features 8 electrically isolated digital outputs (DO), with 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI)

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

6AG1322-1CF00-7AA0) features 8 electrically isolated digital outputs (DO), with 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI) Specification

Efficiency
~7.2 W Typical Power Loss / Heat Dissipation

Frequency
0.5 Hertz (HZ)

Operating Temperature
-25 C to +70 C Celsius (oC)

Phase
N/A (Direct Current infrastructure alignment)

Protection Level
IP20

Input Current
Max 100 mA from 5V DC backplane bus / Max 2 mA from load L+ (no load)

Mounting Type
S7-300 Rail Profile Mounting

Humidity
100% Relative Humidity with condensation/frost permissible

Output Voltage
40 V DC Volt (V)

Rated Voltage
48 V DC Volt (V)

Usage
Industrial Automation

Main Material

Condition
New

Size
4.0 cm Overall Panel Width

Height
12.5 Centimeter (cm)

Function
SM 322, 8 DQ (8 Isolated outputs, 1.5 A rated current per channel)

Application
Reliable digital signal switching under aggressive environmental atmospheres

Product Type
SIPLUS S7-300 High-Temperature Digital Output Module

Weight
0.25 Kilograms (kg)

Dimension (L*W*H)
12.0 cm x 4.0 cm x 12.5 cm Centimeter (cm)

Power Mode
Other

Color
Industrial Gray

Length
12.0 Centimeter (cm)

Width
4.0 Centimeter (cm)

Voltage
48 V DC Volt (v)

Power Consumption
7.2 Watt (W)

Accessories
Requires 1x 20-pole Front Connector Terminal Block (Ordered Separately)

Warranty
Standard Siemens Factory Warranty

6AG1322-1CF00-7AA0) features 8 electrically isolated digital outputs (DO), with 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About 6AG1322-1CF00-7AA0) features 8 electrically isolated digital outputs (DO), with 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI)

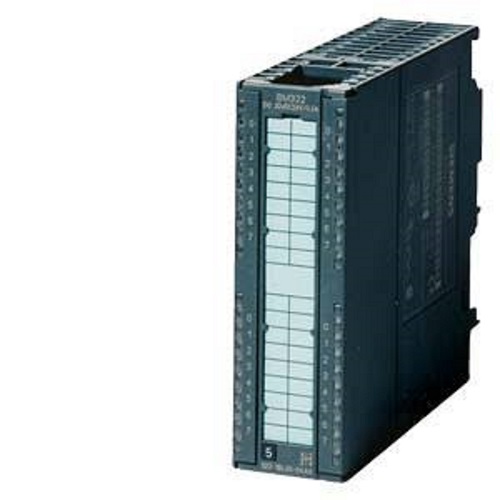

The Siemens SIPLUS S7-300 SM 322 digital output module (model number 6AG1322-1CF00-7AA0) features 8 electrically isolated digital outputs (DO), with 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Derived from the standard SIMATIC 6ES7322-1CF00-0AA0 baseline component, it is engineered for a single-phase architecture and controls external processes utilizing an adjustable load voltage ranging from 48 to 125 V DC.

Each individual output channel is rated for a continuous output current up to 1.5 A and includes electronic short-circuit protection alongside an inductive shutdown voltage limiter. Requiring a single 20-pole front connector, this module is manufactured with a 100% protective environmental conformal coating that safeguards its circuitry against aggressive condensation, frost, and chemical toxins across an extended operational climate ranging from -25 to +70 C.
