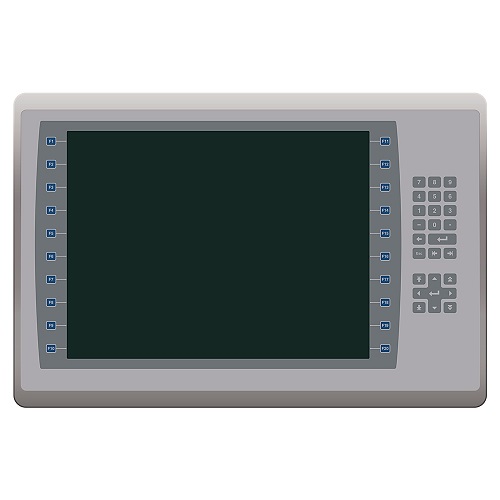

PanelView Plus 7 Standard 1200W | 12.1" Widescreen Touch Terminal, Brandless Front, 24V DC Power

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PanelView Plus 7 Standard 1200W | 12.1" Widescreen Touch Terminal, Brandless Front, 24V DC Power Specification

Rated Voltage
24 V DC Volt (V)

Mounting Type
Recessed Panel Mount / Control Cabinet Door

Protection Level
IP66 / NEMA Type 4X front enclosure seal

Input Current
1.6 to 2.9 A input operational spectrum

Operating Temperature
0 C to +55 C Celsius (oC)

Phase
Single (DC configuration distribution link)

Efficiency
Color TFT 18-bit graphics / FactoryTalk View ME

Humidity
95 % maximum relative non-condensing

Main Material

Usage
Machine-Level Operator Control / Industrial HMI

Size
12.1-inch Widescreen (16:10 aspect ratio)

Condition
New

Height
24.0 Centimeter (cm)

Function
Plant Automation Interfacing & Command

Application
Standard Machine Monitoring & Web Visualization

Product Type
PanelView Plus 7 Standard Terminal

Dimension (L*W*H)
34.0 cm x 24.0 cm x 5.65 cm Centimeter (cm)

Weight
1.95 Kilograms (kg)

Color
Slate Gray Frame (Neutral brandless design)

Voltage
50 W Maximum (30 W Typical operating draw) Volt (v)

Length
30.73 Centimeter (cm)

Width
34.0 Centimeter (cm)

Power Consumption
50 W Maximum (30 W Typical operating draw) Watt (W)

Battery Life
4 Years

Accessories
Rear installation mounting clips & sealing gasket

Warranty
Supplier Dependent (Standard 1 Year)

PanelView Plus 7 Standard 1200W | 12.1" Widescreen Touch Terminal, Brandless Front, 24V DC Power Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

PanelView Plus 7 Standard 1200W | 12.1" Widescreen Touch Terminal, Brandless Front, 24V DC Power About

The Allen-Bradley 2711P-T12W21D8S-B is a high-performance 12.1-inch widescreen industrial HMI terminal precision-engineered for reliable machine-level control and simplified system diagnostics across factory floors. Belonging to the efficiency-focused PanelView Plus 7 Standard family, the "-B" suffix denotes its unique brandless front panel design. This configuration completely eliminates the standard corporate logo to accommodate customized OEM equipment and clean-room machinery aesthetics. The premium TFT color display features an expansive wide aspect ratio canvas outputting a crisp 1280 x 800 WXGA resolution with 18-bit color graphics, backed by a solid-state white LED backlight providing long-lasting operational brightness. Operators interact fluently with active automation zones via a highly responsive, analog-resistive touchscreen interface built to endure 1 million presses.
