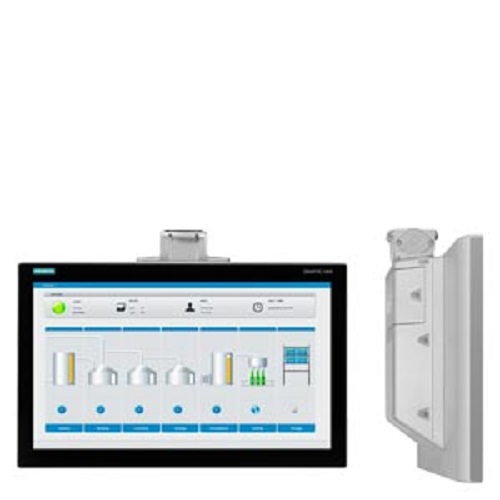

SIMATIC HMI TP1200 Comfort Pro | 12" Pedestal Touch Panel, Neutral Front, Expandable

About SIMATIC HMI TP1200 Comfort Pro | 12" Pedestal Touch Panel, Neutral Front, Expandable

The Siemens 6AV2124-0MC24-1AB0 is a premium 12.1-inch widescreen HMI panel precision-engineered for cabinet-free, direct machine-level industrial monitoring. Part of the specialized SIMATIC HMI TP1200 Comfort Pro series, this rugged device is built specifically for stand or pedestal installation, featuring an expandable housing structure with a mechanical connection flange positioned at the bottom. A major distinguishing feature is its sleek, brandless neutral front layout, making it ideal for customized OEM machinery and clean-room equipment aesthetics. The vibrant TFT touch display outputs a crisp 1280 x 800 pixel resolution with 16 million colors to provide operators with clear process tracking and fluent menu navigation. For comprehensive factory-floor networking, the unit integrates dual high-speed PROFINET Ethernet interfaces alongside a legacy MPI/PROFIBUS DP port to facilitate real-time data communication across diverse controller networks. The robust, fully enclosed design delivers all-round high-degree protection, allowing the terminal to successfully withstand harsh manufacturing environments without requiring an additional control cabinet. Running a stable Windows Embedded Compact 2013 (WEC 2013) platform with 24 MB of configuration memory, it efficiently coordinates intensive data archiving, multi-variable recipes, and complex diagnostic scripts. The advanced operator system is programmed using WinCC Comfort software from version V14 SP1 with HSP onward.
