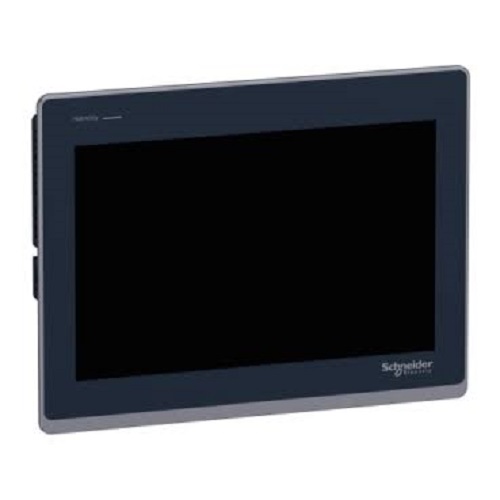

Harmony iPC 19" Widescreen Advanced Modular Display Module, Multi-Touch Screen

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Harmony iPC 19" Widescreen Advanced Modular Display Module, Multi-Touch Screen Specification

  • Protection Level
  • IP66 Front Panel / NEMA Type 4X washdown
  • Efficiency
  • Bright 300 cd/m LED Backlight / 16.7M Display Colors
  • Humidity
  • 95 % Maximum relative non-condensing state
  • Operating Temperature
  • 0 C to +55 C (Standard flat-panel setup boundaries) Celsius (oC)
  • Input Current
  • 8.9 A Maximum temporary peak inrush limit
  • Rated Voltage
  • 24 V DC / 100...240 V AC Volt (V)
  • Phase
  • 95 % Maximum relative non-condensing state
  • Mounting Type
  • Recessed Panel Flush Mount / Enclosure DoorBright 300 cd/m LED Backlight / 16.7M Display Colors
  • Usage
  • High-Visibility Industrial Display / Monitor Node
  • Condition
  • New
  • Size
  • 18.5-inch Widescreen (16:9 aspect ratio)
  • Function
  • Industrial PC User Interface & Diagnostics Node
  • Height
  • 30.90 Centimeter (cm)
  • Application
  • Plant-Floor SCADA Supervision & Industrial Computing
  • Product Type
  • Harmony iPC Modular Display Screen
  • Weight
  • 5.20 Kilograms (kg)
  • Dimension (L*W*H)
  • 48.83 cm x 30.90 cm x 3.50 cm Centimeter (cm)
  • Color
  • Slate Gray Frame / Black Glass Matrix
  • Width
  • 48.83 Centimeter (cm)
  • Voltage
  • 24 V DC / 100...240 V AC Volt (v)
  • Length
  • 46.99 Centimeter (cm)
  • Battery Life
  • 1 Years
  • Accessories
  • Rear chassis connection fasteners & panel seal
  • Warranty
  • Supplier Dependent (Standard 1 Year)


Harmony iPC 19" Widescreen Advanced Modular Display Module, Multi-Touch Screen Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


Harmony iPC 19" Widescreen Advanced Modular Display Module, Multi-Touch Screen About

The Schneider Electric HMIDM9521 is a high-performance 18.5-inch widescreen industrial advanced HMI display module precision-engineered for aggressive machine-level control, hazardous locations, and intensive data supervision. Belonging to the premium Harmony iPC (formerly Magelis iPC) modular family, this unit features a distinct modular architecture designed to function as an independent touchscreen flat screen console. It is tailored to seamlessly snap directly onto a separate Harmony HMIBM Modular Box PC processor engine to create a high-capacity industrial Panel PC, or attach via a Harmony HMIDAD Display Adapter to work as a standalone industrial monitor. The commercial-grade TFT color LCD wide display outputs a crisp 1366 x 768 pixel FWXGA resolution supporting up to 16.7 million rich colors with a contrast ratio of 500:1 and 300 cd/m luminance. Operators interface with enterprise supervisory software via an advanced projected capacitive multi-touch screen that supports a high 4096 x 4096 resolution, smooth smartphone-like gesture analytics, and specialized firmware allowing continuous touch operations even with water layers present on the glass.
Harmony iPC 19
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Hmi Touch Panel Category

SIMATIC IFP1900 PRO | 19

SIMATIC IFP1900 PRO | 19" Pedestal Multi-Touch Monitor, Fully Enclosed IP65, Extended Connection

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Operating Temperature : 0 C to +45 C Celsius (oC)

Accessories : 180.0 cm industrial signal routing cable

Color : Industrial Silver & Black (Standard design)

Application : Extended Version (Max 30m distance)

Get a Price/Quote

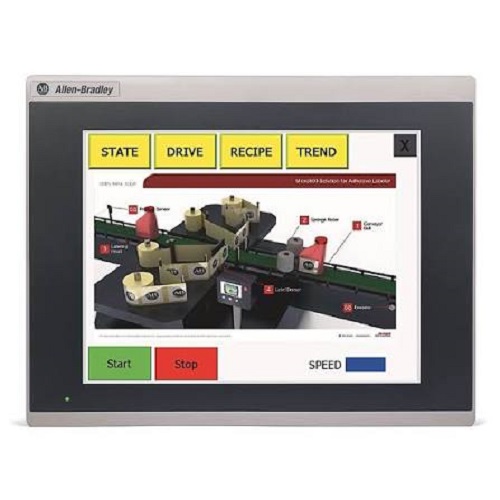

PanelView Plus 7 Standard 600 | 5.7
