SIMATIC IFP1900 PRO | 19" Pedestal Multi-Touch Monitor, Fully Enclosed IP65, Extended Connection

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIMATIC IFP1900 PRO | 19" Pedestal Multi-Touch Monitor, Fully Enclosed IP65, Extended Connection Specification

Operating Temperature
0 C to +45 C Celsius (oC)

Input Current
1.5 A (Typical operating line current)

Rated Voltage
24 V DC Volt (V)

Phase
Single (DC input configuration)

Protection Level
IP65 (Fully enclosed all-around shell)

Mounting Type
Pedestal Mount / Supporting Foot

Humidity
95 % (Non-condensing state)

Efficiency
High-efficiency dimmable LED backlight

Usage
Industrial Operator Monitor / HMI

Main Material

Condition
New

Size
19-inch Widescreen (16:9 ratio)

Height
29.6 Centimeter (cm)

Function
Machine Control & Visualizations

Product Type
Industrial Flat Panel Display (PRO Line)

Application
Extended Version (Max 30m distance)

Dimension (L*W*H)
47.5 cm x 29.6 cm x 9.0 cm Centimeter (cm)

Weight
7.3 Kilograms (kg)

Power Mode
Other

Color
Industrial Silver & Black (Standard design)

Length
47.0 Centimeter (cm)

Voltage
24 V (Permissible 19.2 V to 28.8 V DC) Volt (v)

Width
47.5 Centimeter (cm)

Power Consumption
~40 W (Typical operating power draw) Watt (W)

Accessories
180.0 cm industrial signal routing cable

Warranty
Supplier Dependent (Standard 1 Year)

SIMATIC IFP1900 PRO | 19" Pedestal Multi-Touch Monitor, Fully Enclosed IP65, Extended Connection Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

SIMATIC IFP1900 PRO | 19" Pedestal Multi-Touch Monitor, Fully Enclosed IP65, Extended Connection About

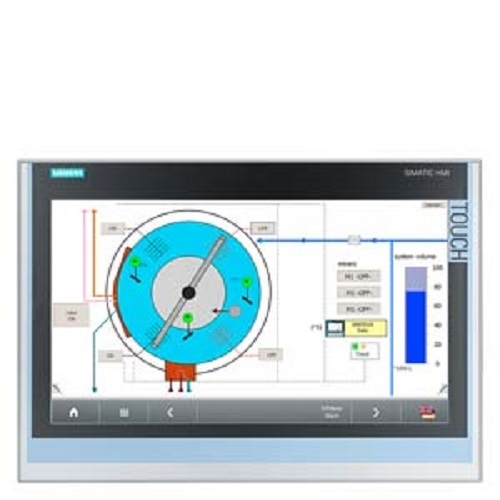

The Siemens 6AV7863-3MA14-1AA0 is a professional-grade 18.5-inch widescreen industrial flat panel monitor precision-engineered for cabinet-free, machine-level visualization. Serving as a direct successor variant to the older -0AA0 model, it belongs to the specialized SIMATIC IFP1900 PRO series designed explicitly for pedestal installation and supporting foot mounting layouts. The premium widescreen display outputs a sharp 1366 x 768 pixel resolution supporting 16.7 million colors backed by an energy-efficient, long-lasting LED backlight. It features scratch-resistant, non-reflective tempered mineral glass screen integrated with highly responsive projected capacitive multi-touch technology to support fluid, intuitive gesture interactions. As an Extended version, it incorporates specialized signal transceivers that allow it to be installed at a long transmission distance of up to 30 metres away from the central industrial computing host via standard DisplayPort and DVI-D interfaces.
