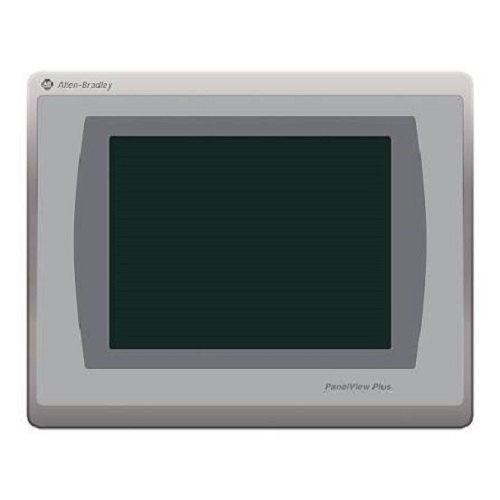

Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Performance Graphic Terminal

Command large-scale process cells with the high-performance Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Graphic Terminal. This premium 10.4-inch SVGA color active-matrix TFT display delivers crisp machine diagnostics at an 800 x 600 resolution across an 18-bit color depth palette. Built as a core component of the multi-featured Performance line, its analog-resistive touchscreen glass offers gesture-free precision engineered to survive over 1 million heavy mechanical actuations on active floor lines.

The defining architectural advantage of this module is its integrated, dual-port 10/100 Mbps Ethernet switch. It natively supports Device Level Ring (DLR), linear, and star network configurations, allowing you to daisy-chain multiple terminals or controllers while maintaining complete network availability if a communications cable is sliced. Running on a nominal 24V DC input layout (18 to 30V DC operating window), the terminal packs 512 MB to 1 GB of RAM and 512 MB of onboard flash storage alongside parallel VNC client/server capabilities for remote tablet-based control. Protected by an oil-resistant, dust-tight IP66 / NEMA 4X front bezel, it provides complete on-machine visualization powered by FactoryTalk View Machine Edition (ME) runtime engines.
