SIPLUS HMI TP1500 Comfort Outdoor Rail | 15" Touch Panel, Railway Approved, Conformal Coating

Price 300007.7 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIPLUS HMI TP1500 Comfort Outdoor Rail | 15" Touch Panel, Railway Approved, Conformal Coating Specification

Phase
DC

Rated Voltage
24 Volt (V)

Mounting Type
Panel Mount

Protection Level
IP66 Front

Operating Temperature
-30 to +60 C Celsius (oC)

Humidity
10 90% RH, non-condensing

Input Current
Approx. 1.7 A

Main Material

Usage
Industrial Automation / Railway & Outdoor Applications

Size
15.4 inch

Condition
New

Function
Operator Control & Process Visualization

Height
31.0 Centimeter (cm)

Product Type
HMI / Operator Interface

Application
Outdoor / Railway Machine Operation & Process Visualization

Weight
4.0 Kilograms (kg)

Dimension (L*W*H)
7.7 41.5 31.0 Centimeter (cm)

Power Mode
Other

Color
Powder-coated Aluminum / UV-resistant

Width
41.5 Centimeter (cm)

Voltage
24 Volt (v)

Length
7.7 Centimeter (cm)

Power Consumption
Approx. 41 Watt (W)

SIPLUS HMI TP1500 Comfort Outdoor Rail | 15" Touch Panel, Railway Approved, Conformal Coating Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About SIPLUS HMI TP1500 Comfort Outdoor Rail | 15" Touch Panel, Railway Approved, Conformal Coating

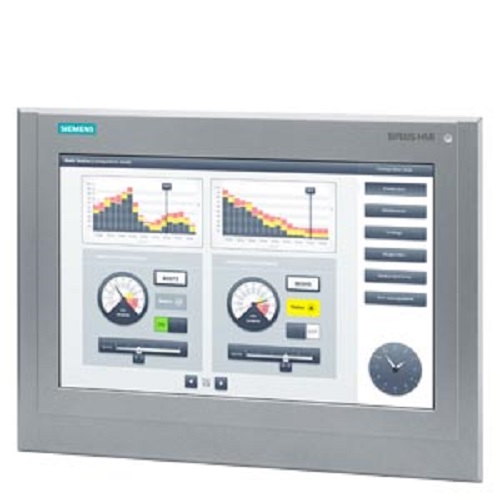

The Siemens 6AG2124-0QC13-1AX0 is a highly specialized, heavy-duty 15.4-inch widescreen HMI panel precision-engineered for railway applications and extreme outdoor environments. Part of the specialized SIPLUS HMI Comfort Panels Outdoor RAIL family, this industrial terminal is fully compliant with strict railway standards including EN 50155, EN 45545, and EN 50121. It incorporates a premium conformal coating on internal circuits to resist humidity, severe condensation, salt spray, and corrosive gases.

The daylight-readable bonded TFT display outputs a sharp 1280 x 800 pixel resolution across 16 million colors, featuring a 100% UV-protected front face and an integrated sensor for automatic backlight dimming. Built to endure extreme climates, it operates flawlessly across an extended temperature range from -30 C to +60 C (with resilience up to +70 C for 10 minutes). Its front housing holds a rugged IP66 rating that is highly resistant to weather elements, eliminating the need for extra outdoor enclosures.

Operators navigate complex graphics via a responsive, analog-resistive touchscreen interface. For multi-network industrial communication, the device integrates a high-speed PROFINET interface alongside a legacy MPI/PROFIBUS DP port. Running on a stable Windows CE 6.0 platform with 12 MB of configuration memory, this reliable operator terminal is seamlessly programmed using WinCC Comfort V13 SP1 or newer software.
