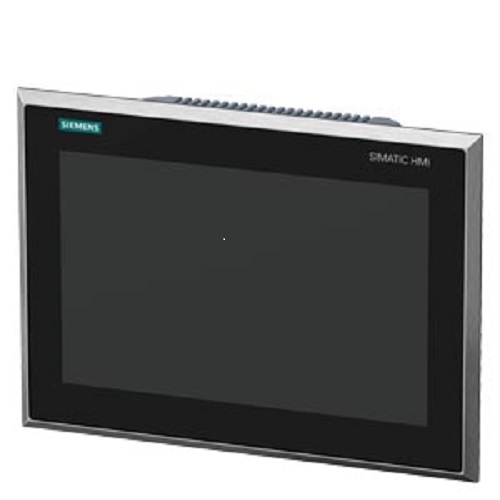

SIMATIC ITC1900 V3 PRO | 19" Support-Arm Multi-Touch Industrial Thin Client

SIMATIC ITC1900 V3 PRO | 19" Support-Arm Multi-Touch Industrial Thin Client About

The Siemens 6AV6646-1BC18-0AA0 is a SIMATIC ITC1900 V3 PRO Industrial Thin Client designed for decentralized machine visualization and operator control in industrial automation environments. It features an 18.5-inch widescreen TFT display, marketed as a 19-inch class display, with 1366 768 pixel resolution, 16.7 million colors, dimmable LED backlighting, and a non-reflective, tempered mineral-glass screen. The display incorporates projected-capacitive touch technology for intuitive operator interaction. This specific PRO version is designed for support-arm mounting without expansion elements, with the flange positioned at the top. It supports RDP, VNC, SIMATIC WinCC Sm@rtServer, HTML5, and other compatible remote visualization technologies, allowing the display to operate as a remote thin-client interface. The unit provides 2 Industrial Ethernet interfaces with integrated switch functionality and 4 USB interfaces, and operates from a 24 V DC supply. With a net weight of approximately 8.78 kg, the 6AV6646-1BC18-0AA0 is suitable for production machinery, industrial control stations, SCADA visualization, and decentralized operator interfaces requiring a rugged 19-inch multi-touch thin client with support-arm installation. Siemens documentation identifies this exact article as the ITC1900 V3 PRO support-arm, non-extendable version.
