SIMATIC ITC1500 V3 | 15" Industrial Thin Client, Multi-Touch, RDP/VNC/SmartServer HTML5

SIMATIC ITC1500 V3 | 15" Industrial Thin Client, Multi-Touch, RDP/VNC/SmartServer HTML5 About

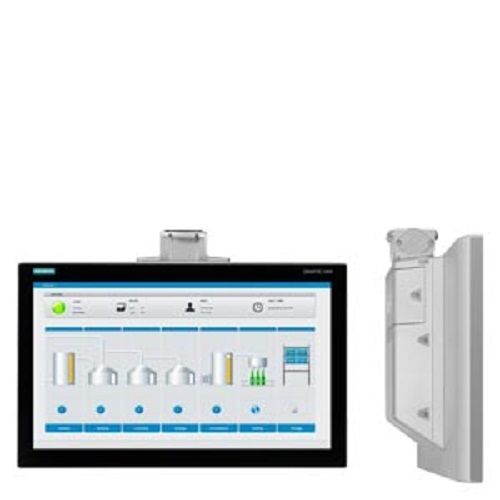

The Siemens 6AV6646-1BA15-0AA0 is a SIMATIC ITC1500 V3 Industrial Thin Client designed for remote visualization and operator-interface applications in industrial automation. It features a 15.6-inch widescreen TFT display with 1366 768 pixel resolution, 16.7 million colors, and dimmable LED backlighting with an estimated 50,000-hour service life at 25 C. The non-reflective, tempered mineral-glass screen incorporates projected-capacitive multi-touch technology, providing intuitive operator control and an integrated on-screen keyboard.

Designed as a built-in, front-mounted industrial unit, the thin client operates from a 24 V DC supply with a permissible range of 19.228.8 V DC. It supports RDP, VNC, SmartServer, HTML5, and other remote visualization protocols, allowing flexible connection to industrial computer and automation systems. Connectivity includes 2 Industrial Ethernet ports with integrated switch functionality, supporting transmission rates up to 1000 Mbit/s, along with 4 rear USB interfaces for peripheral devices. The display can be located up to 100 m from the connected computer unit, enabling decentralized installation. With a front housing size of approximately 398 257 mm, mounting depth of 73 mm, and weight of approximately 5 kg, the 6AV6646-1BA15-0AA0 is suitable for machine control panels, industrial cabinets, production equipment, and distributed visualization systems. The current Siemens datasheet identifies this exact model as a spare part.
