SIMATIC IFP1900 PRO | 19" Support Arm Multi-Touch Monitor, Fully Enclosed IP65, Prepared for Extension Elements

SIMATIC IFP1900 PRO | 19" Support Arm Multi-Touch Monitor, Fully Enclosed IP65, Prepared for Extension Elements About

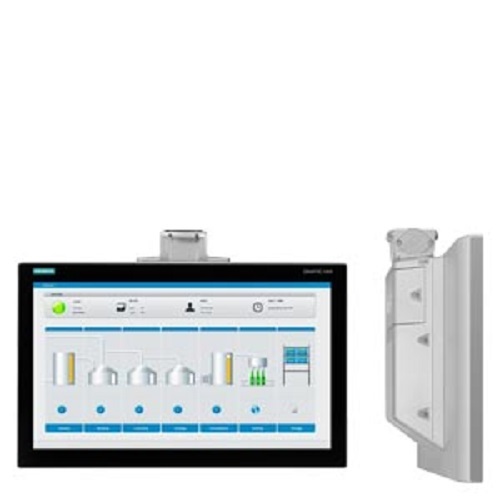

The Siemens 6AV7863-3MA16-1AA0 is a professional-grade 18.5-inch widescreen industrial flat panel monitor precision-engineered for cabinet-free, machine-level visualization. Belonging to the specialized SIMATIC IFP1900 PRO series, this heavy-duty terminal is designed explicitly for support arm installation utilizing a mechanical connection flange positioned at the top of its housing structure. Distinct from the baseline support arm models, this specific hardware configuration is uniquely prepared to accommodate additional operator expansion elements, allowing for the fast, flexible mechanical integration of physical pushbuttons, switches, and custom emergency stops directly underneath the display panel. The premium widescreen display outputs a sharp 1366 x 768 pixel resolution supporting 16.7 million colors backed by an energy-efficient, long-lasting LED backlight. It features a scratch-resistant, non-reflective tempered mineral glass screen integrated with highly responsive projected capacitive multi-touch technology to support fluid, intuitive gesture interactions. As an Extended version, it incorporates specialized signal transceivers that allow it to be installed at a long transmission distance of up to 30 metres away from the central industrial computing host via professional DisplayPort and DVI-D interfaces.
