SIMATIC HMI TP2200 Comfort PRO | 22" Multi-Touch Panel, Support-Arm Mounting, IP65

SIMATIC HMI TP2200 Comfort PRO | 22" Multi-Touch Panel, Support-Arm Mounting, IP65 About

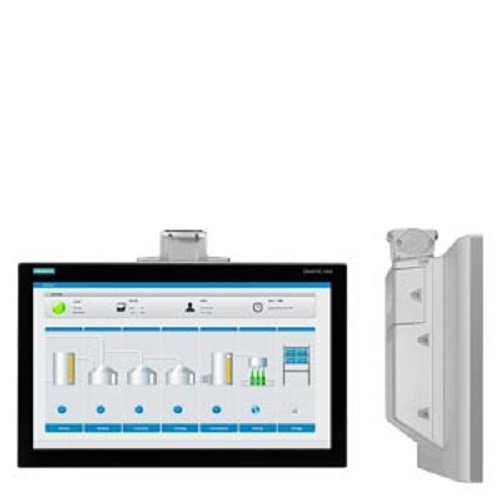

The Siemens 6AV2124-0XC24-0AX1 is a SIMATIC HMI TP2200 Comfort PRO designed for demanding industrial machine operation, monitoring, and visualization applications. It features a 21.5-inch widescreen TFT display, classified as a 22-inch panel, with Full HD 1920 1080 pixel resolution, 16.7 million colors, and LED backlighting with an expected service life of approximately 30,000 hours at 25 C. The panel uses projected-capacitive touch technology for intuitive multi-touch operation and has no physical function keys.

This specific version is designed for non-extendable support-arm mounting with the flange positioned at the top. It operates from a 24 V DC supply and provides 24 MB configuration/user memory. Communication interfaces include 2 Industrial Ethernet interfaces, consisting of a 2-port integrated switch plus an independent Ethernet interface, together with 1 combined RS422/RS485 interface, 2 USB 2.0 ports, and 2 SD card slots. It supports PROFINET, PROFINET IRT, PROFIBUS DP, MPI, and MRP media redundancy. The fully enclosed housing provides IP65 protection, including the rear, and NEMA Type 4X protection at the front, making it suitable for decentralized operator stations, production machinery, process plants, and demanding industrial automation environments. The 6AV2124-0XC24-0AX1 is the successor to the earlier 6AV2124-0XC24-0AX0 and is configurable from TIA Portal V16 Update 8 or V17 Update 6 onward.
