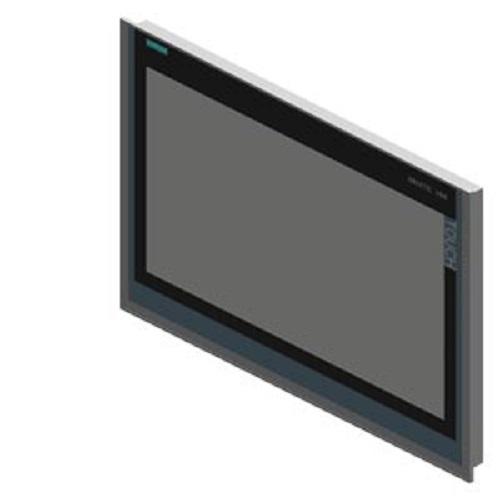

SIMATIC HMI TP1900 Comfort Pro | 19" Support Arm Touch Panel, PROFINET, MPI/PROFIBUS DP

About SIMATIC HMI TP1900 Comfort Pro | 19" Support Arm Touch Panel, PROFINET, MPI/PROFIBUS DP

The Siemens 6AV2124-0UC24-0AX0 is a high-performance 18.5-inch widescreen HMI panel precision-engineered for cabinet-free machine-level integration on the modern factory floor. Part of the specialized SIMATIC HMI TP1900 Comfort Pro series, this rugged operator terminal is built specifically for support arm mounting featuring a non-expandable housing structure with a mechanical connection flange positioned at the top. The brilliant TFT touch display outputs a sharp 1366 x 768 pixel resolution and 16 million colors to ensure detailed plant process tracking and fluent menu navigation. For comprehensive industrial networking, the unit integrates dual high-speed PROFINET Ethernet interfaces alongside a legacy MPI/PROFIBUS DP port to facilitate seamless real-time data communication across diverse PLC systems. The robust, fully enclosed design delivers all-round high-degree protection, allowing the terminal to successfully withstand harsh manufacturing environments without requiring an additional control cabinet enclosure. Running a stable Windows Embedded Compact 2013 (WEC 2013) platform with 24 MB of configuration memory, it efficiently coordinates intensive data archiving, multi-variable recipes, and complex diagnostic scripts. The advanced operator device is seamlessly programmed using WinCC Comfort software from version V14 SP1 with HSP onward to maximize system performance across heavy automation configurations.
