SIMATIC HMI MTP1200 Unified Basic | 12" Multi-Touch HMI, PROFINET

SIMATIC HMI MTP1200 Unified Basic | 12" Multi-Touch HMI, PROFINET About

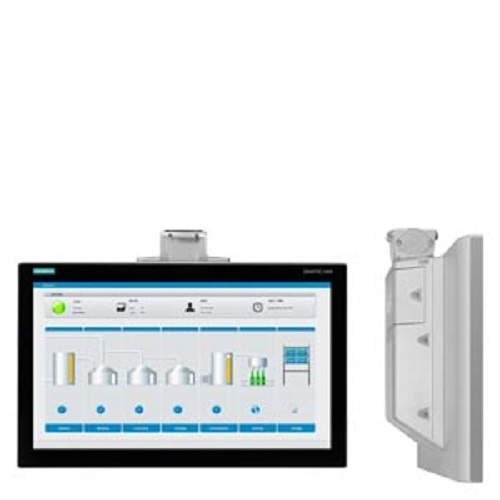

The Siemens 6AV2123-3MB32-0AW0 is a SIMATIC HMI MTP1200 Unified Basic Panel designed for machine operation, monitoring, and visualization in industrial automation applications. It features a 12.1-inch widescreen TFT display with 1280 800 pixel resolution, 16.7 million colors, and a dimmable LED backlight adjustable from 10100%. The panel incorporates a responsive multi-touch touchscreen with an integrated on-screen keyboard, providing intuitive operation and control.

The panel is equipped with 1 Gigabit Industrial Ethernet/PROFINET interface and 2 USB 2.0 ports, supporting TCP/IP, DHCP, SNMP, DCP, and LLDP communication. It operates from a 24 V DC supply, with typical active power consumption of approximately 11.1 W. The front provides IP65 protection, while the rear is rated IP20. It can be installed in either portrait or landscape orientation, subject to the specified mounting conditions. With a net weight of approximately 2.08 kg and an approximate depth of 55 mm, the 6AV2123-3MB32-0AW0 is suitable for industrial machines, production equipment, packaging systems, and control cabinets. It is configurable using WinCC Unified Basic V18 Update 3 or later and is currently listed as an active product.
