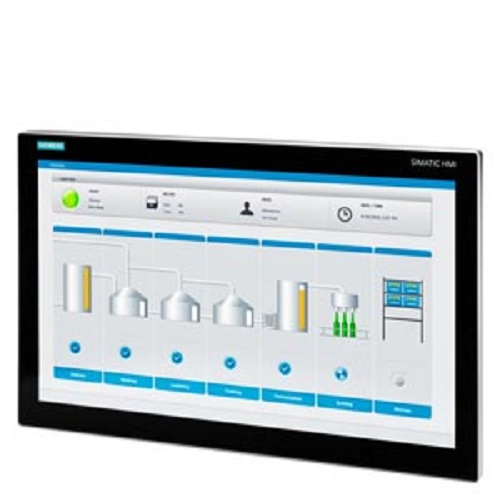

SIMATIC Flat Panel 15 | 15" Industrial Recessed Monitor, Dual Power Architecture, Display Only

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

SIMATIC Flat Panel 15 | 15" Industrial Recessed Monitor, Dual Power Architecture, Display Only Specification

  • Mounting Type
  • Built-in Panel Mount / Rack Mount
  • Phase
  • Single-Phase (for AC main lines)
  • Operating Temperature
  • 0 C to +50 C Celsius (oC)
  • Input Current
  • 1.0 A (at 24V) / 0.5 A (at 230V)
  • Efficiency
  • Dimmable LED-backlit LCD panel
  • Rated Voltage
  • 24 V DC / 230 V AC Volt (V)
  • Humidity
  • 95 % (Non-condensing state)
  • Protection Level
  • IP65 (Front-side dust & splash seal)
  • Frequency
  • 50 / 60 Hertz (HZ)
  • Main Material
  • Usage
  • Industrial Operator Monitor / HMI
  • Size
  • 15-inch Display
  • Condition
  • New
  • Function
  • Machine Control & Visualizations
  • Height
  • 31.0 Centimeter (cm)
  • Application
  • Standard Recessed Mounting / Console
  • Product Type
  • Industrial Flat Panel Display
  • Weight
  • 9.14 Kilograms (kg)
  • Dimension (L*W*H)
  • 48.3 cm x 31.0 cm x 5.5 cm Centimeter (cm)
  • Color
  • Industrial Silver / Metallic Gray
  • Voltage
  • 24 Volt (v)
  • Length
  • 38.1 Centimeter (cm)
  • Width
  • 48.3 Centimeter (cm)
  • Power Consumption
  • ~26 W (Typical operating power draw) Watt (W)
  • Accessories
  • 180.0 cm industrial VGA cable included
  • Warranty
  • Supplier Dependent (Standard 1 Year)


SIMATIC Flat Panel 15 | 15" Industrial Recessed Monitor, Dual Power Architecture, Display Only Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


SIMATIC Flat Panel 15 | 15" Industrial Recessed Monitor, Dual Power Architecture, Display Only About

The Siemens 6AV7861-2AB00-2AA0 is a professional-grade 15-inch classic-aspect industrial flat panel monitor precision-engineered for control cabinet installation and remote plant visualization systems. Based on the robust SIMATIC Flat Panel 15 framework, this specific model is a display-only version configured without any touchscreen functionality or integrated function keys, serving strictly as a heavy-duty video receiver terminal. A major differentiator for this variant is its flexible dual power architecture, natively accepting both low-voltage 24V DC and high-voltage 120/240V AC inputs to accommodate varying factory floor grids without requiring auxiliary transformers. It features a high-contrast TFT display with a traditional 4:3 layout, outputting a crisp 1024 x 768 pixel resolution and 16.2 million colors illuminated by a long-lasting, dimmable LED backlight.
