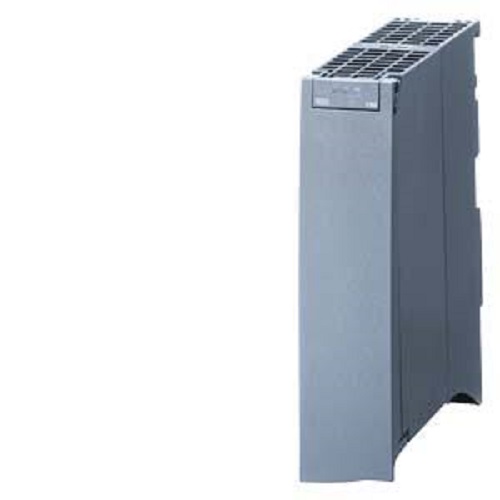

Siemens, SIPLUS S7-1500, 6AG1541-1AD00-7AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS S7-1500, 6AG1541-1AD00-7AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

Humidity
100% Relative Humidity with condensation/frost permissible

Mounting Type
S7-1500 DIN Rail Profile Mounting

Rated Voltage
15 V DC Volt (V)

Input Current
Typ. 35 mA from the backplane bus interface

Phase
N/A (Direct Current micro-bus tracing alignment)

Protection Level
IP20

Operating Temperature
-40 C to +70 C Celsius (oC)

Efficiency
Highly efficient serial driver loops reducing structural power draw

Usage
Industrial Automation

Main Material

Size
3.5 cm Overall Panel Width

Condition
New

Function
CM PtP RS 232 HF (High-performance interface with extended buffering)

Height
14.7 Centimeter (cm)

Application
High-performance point-to-point serial communication in aggressive environments

Product Type
SIPLUS High-Feature (HF) Point-to-Point Communications Module

Weight
0.264 Kilograms (kg)

Dimension (L*W*H)
12.7 cm x 3.5 cm x 14.7 cm Centimeter (cm)

Power Mode
Other

Color
Industrial Gray

Length
12.7 Centimeter (cm)

Voltage
15 V DC Volt (v)

Width
3.5 Centimeter (cm)

Power Consumption
0.65 Watt (W)

Accessories
Integrated 9-pin Sub-D male connector plug interface

Warranty
Standard Siemens Factory Warranty

Siemens, SIPLUS S7-1500, 6AG1541-1AD00-7AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIPLUS S7-1500, 6AG1541-1AD00-7AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

The Siemens SIPLUS S7-1500 CM PtP RS232 HF communication module (model number 6AG1541-1AD00-7AB0) provides high-performance point-to-point serial communication links, featuring 0 digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Derived from the standard SIMATIC 6ES7541-1AD00-0AB0 baseline component, it integrates a 9-pin D-sub plug supporting faster serial protocols including Freeport (ASCII), 3964(R), USS, and Modbus RTU master/slave topologies at transmission speeds up to 115.2 Kbit/s.

Operating within a single-phase automated system architecture, it draws nominal power directly via the backplane bus system at 24 V DC. This High Feature (HF) interface module is treated with a ruggedized environmental conformal coating to guard circuit pathways against moisture, active contaminants, and aggressive atmospheric condensation across extreme operating climates from -40 to +70 C (with cold startup down to -25 C).
