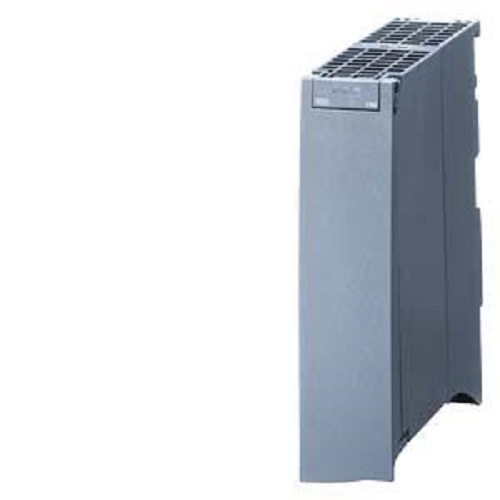

Siemens, SIPLUS S7-1500, 6AG1541-1AB00-7AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS S7-1500, 6AG1541-1AB00-7AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

Protection Level
IP20

Output Voltage
0 Volt (V)

Efficiency
~0.6 W Typical Power Loss / Minimal internal thermal dissipation

Phase
N/A (Direct Current micro-bus tracing alignment)

Mounting Type
S7-1500 DIN Rail Profile Mounting

Rated Voltage
15 V DC Volt (V)

Humidity
100% Relative Humidity with condensation/frost permissible

Input Current
Typ. 33 mA drawn from the backplane bus interface

Operating Temperature
-40 C to +70 C Celsius (oC)

Usage
Industrial Automation

Main Material

Size
3.5 cm Overall Panel Width

Condition
New

Height
14.7 Centimeter (cm)

Function
CM PtP RS 422 / 485 HF (High-performance interface with extended transmission limits)

Product Type
SIPLUS High-Feature (HF) Point-to-Point Communications Module

Application
High-performance point-to-point serial communication inside corrosive climates

Dimension (L*W*H)
12.7 cm x 3.5 cm x 14.7 cm Centimeter (cm)

Weight
0.275 Kilograms (kg)

Power Mode
Other

Color
Industrial Gray

Voltage
15 V DC Volt (v)

Length
12.7 Centimeter (cm)

Width
3.5 Centimeter (cm)

Power Consumption
0.65 Watt (W)

Accessories
3.5 cm Overall Panel Width

Warranty
Standard Siemens Factory Warranty

Siemens, SIPLUS S7-1500, 6AG1541-1AB00-7AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIPLUS S7-1500, 6AG1541-1AB00-7AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

The Siemens SIPLUS S7-1500 CM PtP RS-422/485 HF communication module (model number 6AG1541-1AB00-7AB0) provides high-performance point-to-point serial communication links, featuring 0 digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Derived from the standard SIMATIC 6ES7541-1AB00-0AB0 baseline hardware blueprint, it integrates a 15-pin D-sub socket supporting faster serial protocols including Freeport (ASCII), 3964(R), USS, and Modbus RTU master/slave topologies at high transmission speeds up to 115.2 Kbit/s.

Operating within a single-phase automated network architecture, it draws nominal data loop power directly via the backplane bus system at a standard 24 V DC electrical rating. This High Feature (HF) series module is manufactured with a ruggedized environmental conformal coating that safeguards its circuit board components from high atmospheric condensation, frost, and active industrial pollutants across severe ambient temperatures ranging from -40 to +70 C (with cold startup limits down to -25 C).
